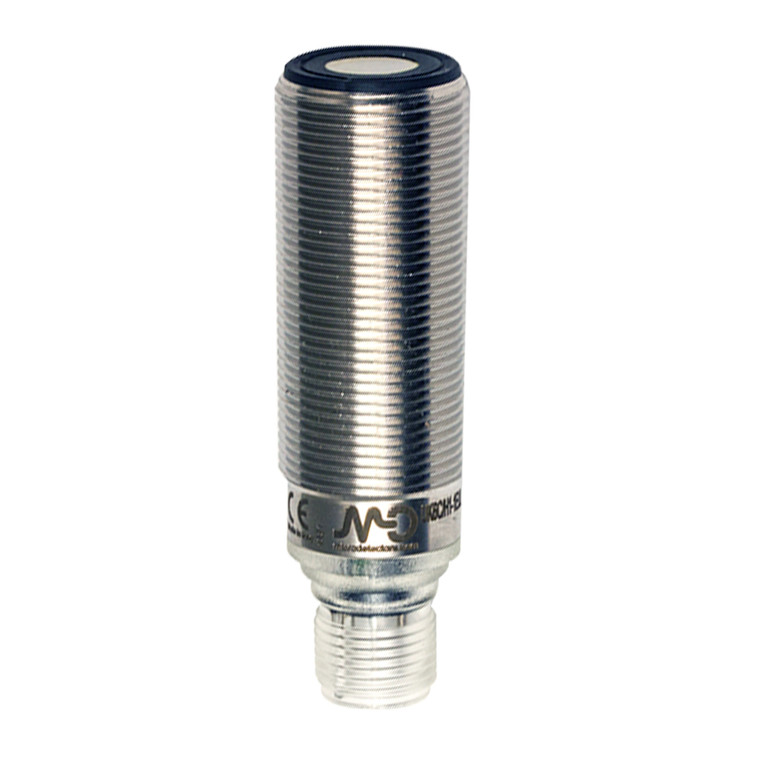

Datasensing UK6C/HN-1EUL Sensors
Datasensing
$246.83
The Datasensing UK6C/HN-1EUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. Featuring a short housing, these sensors offer both digital and analogue outputs, making them versatile for various applications. With a nominal sensing distance of 800mm and a thermal drift of Sr at ?2%, they ensure consistent performance. The sensors boast a repeat accuracy of 0.50% and a beam angle of 8° ± 2°, with a resolution of ?3mm. Sensitivity can be easily adjusted using the teach-in button, and they include thermal compensation for enhanced accuracy.
These sensors operate on a voltage range of 10 - 30Vdc, with a no-load supply current of ?35mA at 30V. They support a load current of 100mA and have a leakage current of 10?A at 30Vcc. The output voltage drop is a maximum of 2.2V at IL=100 mA, with a maximum ripple content of 5%. LED indicators provide clear status updates, with green indicating echo and yellow for output.
Built with a robust stainless steel AISI 316L housing, the sensors are designed to withstand harsh environments, offering IP67 protection. They are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection. The sensors are compatible with IEC 60947-5-2 standards for EMC and can endure shocks and vibrations as per IEC EN60947-5-2 / 7.4. Operating efficiently in temperatures ranging from -20°C to +70°C, they are ideal for diverse industrial settings. The package includes two M18x1 nuts and two Ø 18 washers for easy installation.
- Nominal sensing distance:
- 800mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 60mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN
- Output Function:
- NO/NC
- Switching frequency:
- 5Hz
- Response time:
- 400ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 80g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
