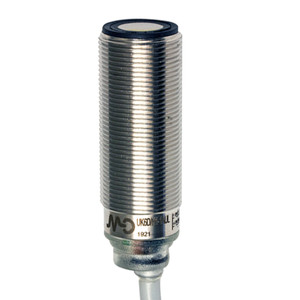

The Datasensing UK6D/H2-1AUL Sensors are high-performance M18 diffuse reflection sensors designed for precision and reliability. With a nominal sensing distance of 1200mm and a thermal drift of Sr at ?2%, these sensors ensure accurate detection in various industrial applications. The short housing design, made from durable stainless steel AISI 316L, provides robust protection and longevity.
Equipped with both digital and analogue outputs, the sensors offer a 4-20mA output type, making them versatile for integration into different systems. The sensors feature a beam angle of 8° ± 2° and a resolution of ?3mm, ensuring precise detection capabilities. The sensitivity can be easily adjusted using the Teach-in button, and the sensors boast a repeat accuracy of 0.50% and a hysteresis of 1%.
Designed to operate efficiently within a temperature range of -20°C to +70°C, these sensors are equipped with thermal compensation to maintain performance in varying conditions. The sensors are protected against short-circuits, reverse polarity, and impulsive overvoltage, ensuring reliable operation. With a degree of protection rated at IP67, they are resistant to dust and water ingress.
The sensors come with a 2m PVC cable for easy connection and are supplied with two M18x1 nuts and two Ø 18 washers for secure installation. The LED indicators provide clear status updates, with a green light for echo and a yellow light for output. With approvals from CE and cULus, and EMC compatibility with IEC 60947-5-2, these sensors meet high safety and performance standards.
- Nominal sensing distance:
- 1200mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 80mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- 4...20mA
- Switching frequency:
- 5Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 140g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- 2m PVC Cable
- Tightening torque:
- 50Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
