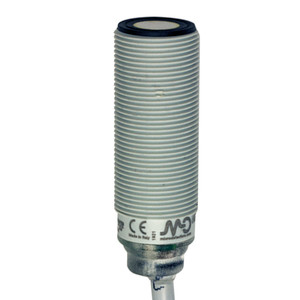

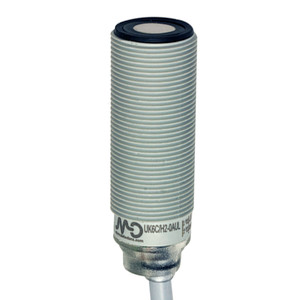

The Datasensing UK6D/HN-0AUL Sensors are advanced M18 diffuse reflection sensors designed for precision and reliability. With a nominal sensing distance of 1200mm and a short housing, these sensors are perfect for applications requiring compact solutions. They feature both digital and analogue outputs, allowing for versatile integration into various systems. The sensors boast a thermal drift of Sr ?2%, repeat accuracy of 0.50%, and a resolution of ?3mm, ensuring high precision in detection tasks.
Equipped with a teach-in button for sensitivity adjustment, these sensors offer a beam angle of 8° ± 2° and a hysteresis of 1%. They are thermally compensated, ensuring consistent performance across a wide operating temperature range of -20°C to +70°C. The sensors have a minimum sensing distance (blind zone) of 80mm and a linearity error of just 1%.
The UK6D/HN-0AUL Sensors operate on a voltage range of 10 - 30Vdc, with a no-load supply current of ?35mA at 30V. They support a load current of 100mA and have a leakage current of 10?A at 30Vcc. The output voltage drop is a maximum of 2.2V at IL=100mA, with a maximum ripple content of 5%. LED indicators provide clear status updates, with green indicating echo and yellow for output.
Designed with robust PBT housing, these sensors are IP67 rated for mechanical protection, making them suitable for harsh environments. They come with short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring durability and safety. The sensors are supplied with 2 nuts M18x1 and 2 washers Ø 18 for easy installation. With CE cULus approvals and EMC compatibility per IEC 60947-5-2, these sensors meet high industry standards for quality and performance.
- Nominal sensing distance:
- 1200mm
- Thermal drift of Sr:
- ?2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 8° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 80mm
- Linearity error:
- 1%
- Function Principle:
- Diffuse reflection
- Output type:
- NPN
- Output Function:
- NO/NC
- Switching frequency:
- 5Hz
- Response time:
- 400ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?35mA @Val = 30V
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 75g
- Housing Material:
- PBT housing
- Connections:
- 2m PVC Cable
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
- User Manuals:
- View
