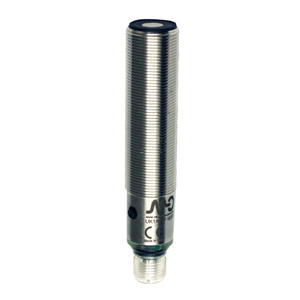

The Datasensing UKR1A/GM-1ESY Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. Featuring a nominal sensing distance of 400mm, these sensors are equipped with a teach-in button for easy sensitivity adjustment, ensuring quick setup and operation. The robust AISI316L stainless steel housing provides durability and protection, making it suitable for various industrial environments.
With a beam angle of 10° ± 2° and a resolution of ?3mm, the UKR1A/GM-1ESY Sensors offer high accuracy and repeatability, with a repeat accuracy of 0.50%. The sensors include models with digital programmable outputs and options for current or voltage analogue outputs, allowing for versatile application use. The adjustable hysteresis function and programmable double digital outputs are specifically designed for level detection.
The multifunction LED indicator provides clear status updates, including output type, adjustment procedure, NO/NC selection, and reverse analog output slope. The sensors operate within a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. They feature short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation.
Designed to withstand harsh conditions, the sensors have an operating temperature range of -20°C to +70°C and a storage temperature range of -35°C to +80°C without freezing. They are IP67 rated for mechanical protection and comply with EMC compatibility standards IEC 60947-5-2. The sensors come with supplied accessories, including two M18x1 nuts and two Ø 18 washers, for easy installation.
- Nominal sensing distance:
- 400mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 10° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Linearity error:
- 1%
- Minimum distance from background:
- 100mm
- Function Principle:
- Retroreflective
- Output type:
- 2x NPN
- Output Function:
- NO + NC
- Switching frequency:
- 10Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 300kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
