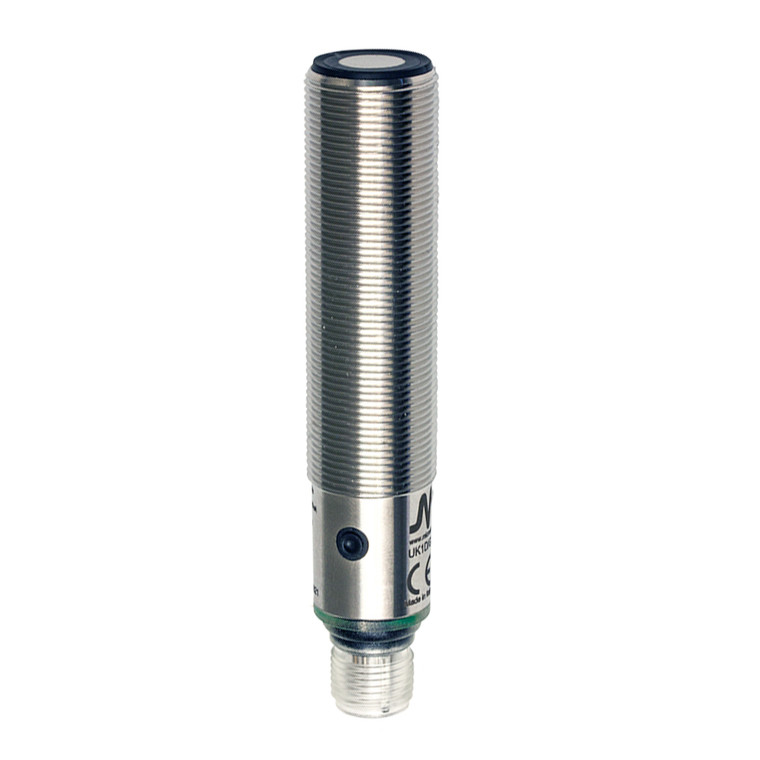

Datasensing UKR1D/GM-1ESY Sensors
Datasensing
$371.03
The Datasensing UKR1D/GM-1ESY Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. With a nominal sensing distance of 1600mm and a beam angle of 15° ± 2°, these sensors offer exceptional accuracy with a repeat accuracy of 0.50% and a resolution of ?3mm. The sensors feature a robust AISI316L stainless steel housing, ensuring durability and protection with an IP67 rating.
Equipped with a teach-in button, the sensors allow for easy sensitivity adjustment and working area configuration, supporting both window teach and single point teach modes. The multifunction LED indicator provides clear feedback on output type, adjustment procedures, and NO/NC selection, enhancing user convenience.
The sensors operate on a voltage range of 10 - 30Vdc, with a low no-load supply current of ?50mA and a load current of 100mA. They include essential protections such as short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation.
With a compact design of M18 x 1 / L = 91.6mm and a weight of 100g, these sensors are easy to install using the M12 plug connection. They are suitable for a wide range of applications, thanks to their thermal compensation, adjustable hysteresis function, and compliance with CE cULus and EMC standards. Ideal for environments with operating temperatures ranging from -20°C to +70°C, the Datasensing UKR1D/GM-1ESY Sensors are a versatile and dependable choice for your sensing needs.
- Nominal sensing distance:
- 1600mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 15° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Linearity error:
- 1%
- Minimum distance from background:
- 250mm
- Function Principle:
- Retroreflective
- Output type:
- 2x NPN
- Output Function:
- NO + NC
- Switching frequency:
- 3Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 100g
- Housing Material:
- stainless steel AISI 316L
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 230kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
