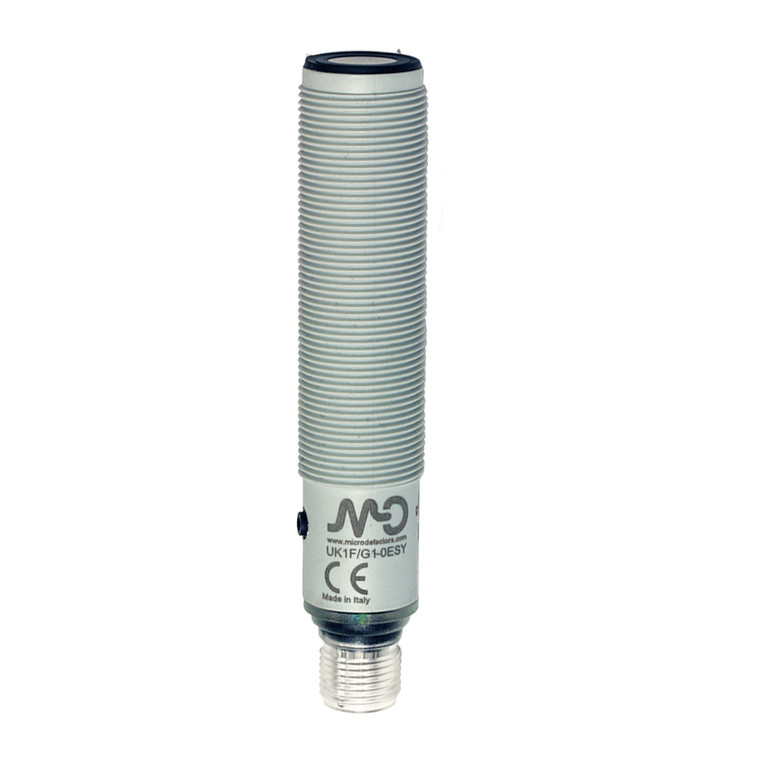

The Datasensing UKR1F/GW-0ESY Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. With a nominal sensing distance of 2200mm and a minimum sensing distance of 200mm, these sensors are perfect for a wide range of applications. They feature a teach-in button for easy sensitivity adjustment and a multifunction LED indicator for output type, adjustment procedure, and more. The sensors offer a beam angle of 14° ± 2°, ensuring accurate detection with a resolution of ?3mm.
Equipped with dual PNP outputs (NO + NC), these sensors provide a switching frequency of 2Hz and a response time of 500ms. They operate on a voltage range of 10 - 30Vdc, with a no-load supply current of ?50mA and a load current of 100mA. The sensors are designed with robust PBT housing, offering IP67 protection, and are capable of withstanding operating temperatures from -20°C to +70°C.
Additional features include thermal compensation, short-circuit protection, reverse polarity protection, and impulsive overvoltage protection. The sensors are CE cULus approved and comply with EMC compatibility standards IEC 60947-5-2. Supplied with two nuts and washers, these sensors are ready for immediate installation and use.
- Nominal sensing distance:
- 2200mm
- Thermal drift of Sr:
- ±2%
- Repeat Accuracy:
- 0,50%
- Beam angle:
- 14° ± 2°
- Resolution:
- ?3mm
- Sensitivity adjustment:
- Teach-in button
- Hysteresis:
- 1%
- thermal compensation:
- Yes
- Minimum sensing distance (blind zone):
- 200mm
- Linearity error:
- 1%
- Minimum distance from background:
- 300mm
- Function Principle:
- Retroreflective
- Output type:
- 2x PNP
- Output Function:
- NO + NC
- Switching frequency:
- 2Hz
- Response time:
- 500ms
- Operating Voltage:
- 10 - 30Vdc
- No-Load supply current:
- ?50mA
- Load current:
- 100mA
- Leakage current:
- 10?A @ 30Vcc
- Output voltage drop:
- 2,2Vmax. @ IL=100 mA
- Max ripple content:
- 5%
- LED indicators:
- green: echo - yellow: output
- Time delay before availability:
- ?300ms
- Short-circuit protection:
- Yes
- Reverse Polarity Protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Weight:
- 70g
- Housing Material:
- PBT housing
- Connections:
- M12 Plug
- Tightening torque:
- 1Nm
- Storage temperature:
- - 35°C + 80° C without freeze
- Transducer Frequency:
- 200kHz
- Diameter/Dimension:
- M18
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- IEC EN60947-5-2 / 7.4
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M18x1, 2 washers Ø 18
- Mechanical Protection:
- IP67
