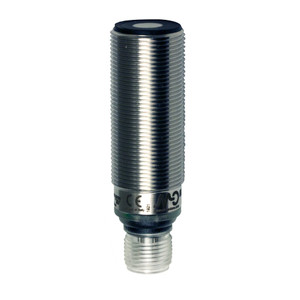

Datasensing UKR6A/HP-0EUL Sensors

The Datasensing UKR6A/HP-0EUL Sensors are advanced ultrasonic retroreflective sensors designed for precision and reliability. Featuring a compact M18 plastic housing, these sensors offer a nominal sensing distance of 270mm with a thermal drift of Sr ?2%. They provide both digital and analogue outputs, ensuring versatile application possibilities. The sensors are equipped with a teach-in button for easy sensitivity adjustment and have a beam angle of 7° ± 2°. With a resolution of ?2mm and a repeat accuracy of 0.50%, they deliver exceptional performance in detecting objects within a range of 70-300mm. The sensors are designed with a minimum sensing distance (blind zone) of 40mm and a minimum distance from the background of 50mm, making them ideal for various industrial applications. They feature a PNP output type with NO/NC output functions and a switching frequency of 8Hz. The response time is a swift 400ms, and they operate on a voltage range of 10 - 30Vdc with a no-load supply current of ?35mA at 30V. Built to withstand challenging environments, these sensors have an IP67 degree of protection and are equipped with short-circuit, reverse polarity, and impulsive overvoltage protection. The robust PBT housing ensures durability, while the M12 plug connection facilitates easy installation. Operating efficiently in temperatures ranging from -20°C to +70°C, these sensors are CE and cULus approved, ensuring compliance with international standards. The package includes two M18x1 nuts and two Ø 18 washers for secure mounting.
