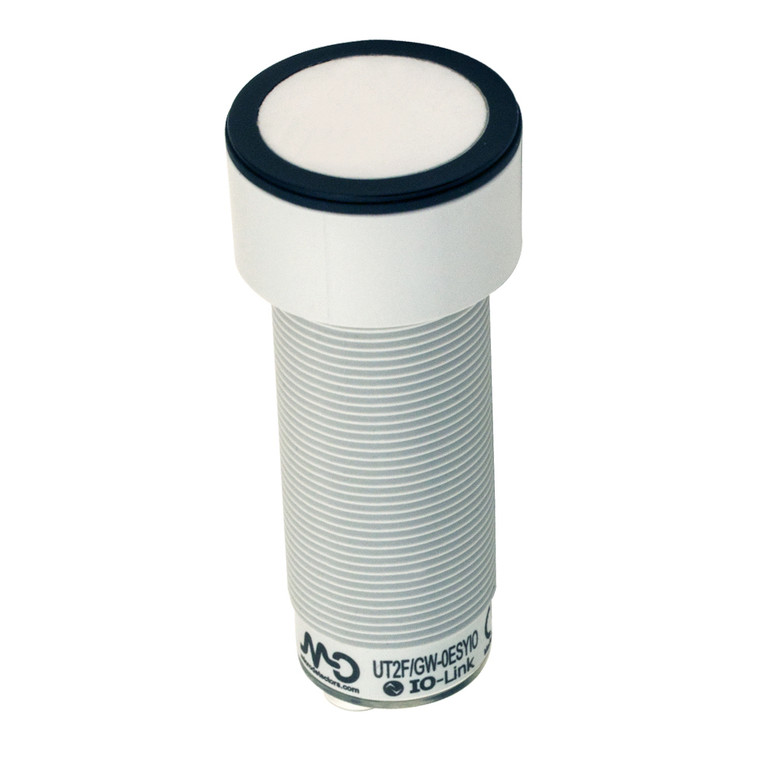

The Datasensing UT2F/G4-0ESY Sensors are high-performance ultrasonic sensors designed for precision and reliability. Encased in a robust M30 housing, these sensors feature a large transducer with a diameter of 38.8 mm, providing an impressive sensing range of 350-6000 mm. They offer both analog (4-20 mA) and digital (NPN NO/NC) outputs, making them versatile for various applications. The sensors are equipped with a convenient teach-in button for easy sensitivity adjustment and an adjustable working area, allowing for quick installation and setup.
The UT2F/G4-0ESY Sensors are built with a durable plastic and AISI 316L stainless steel housing, ensuring longevity and resistance to harsh environments. They come with an M12 plug connection for secure and straightforward integration. The sensors also feature two multifunction LEDs: an orange LED for adjustment procedures and output type indication, and a green LED for target alignment, enhancing user interaction and feedback.
These sensors are designed with advanced features such as adjustable hysteresis, programmable slope for optimized resolution, and a diffuse reflection function principle. They are equipped with essential protections, including short-circuit, reverse polarity, and impulsive overvoltage protection, ensuring safe and reliable operation. With a high degree of mechanical protection and EMC compatibility, the Datasensing UT2F/G4-0ESY Sensors are ideal for demanding industrial applications.
