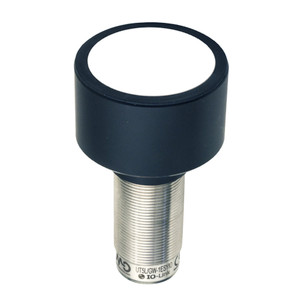

The Datasensing UT5L/GW-1ESYIO Sensors are advanced ultrasonic sensors designed for high-performance applications. Encased in a robust AISI316L stainless steel M30 housing, these sensors feature a large 61 mm transducer, offering exceptional sensing distances ranging from 600 to 8000 mm. The sensors are equipped with a PNP adjustable hysteresis and a standard window, ensuring precise level detection and object recognition.
Installation is made simple with the M12 connection and a convenient teach-in button, allowing for quick adjustments to the working area in either window mode or object mode. The sensors also include two multifunction LEDs: an orange LED for adjustment procedures and output type, and a green LED for target alignment, providing clear visual feedback during setup and operation.
With a diffuse reflection function principle, the UT5L/GW-1ESYIO Sensors offer IO-Link and 2x PNP output types with NO/NC multifunctions, making them versatile for various industrial applications. The sensors are designed to withstand harsh environments, featuring short-circuit, reverse polarity, and impulsive overvoltage protection, along with EMC compatibility and a high degree of mechanical protection against shocks and vibrations.
Ideal for applications requiring precise and reliable sensing, the Datasensing UT5L/GW-1ESYIO Sensors are a top choice for professionals seeking durability and performance in ultrasonic sensing technology.
- Sensitivity adjustment:
- Teach-in button
- Function Principle:
- Diffuse reflection
- Output type:
- IO-Link/ 2x PNP
- Output Function:
- NO/NC multifunctions
- Connections:
- M12 Plug
- Diameter/Dimension:
- M30
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- Catalog:
- View
- User Manuals:
- View
- Software:
- View
- Quick References:
- View" target="_blank">View
