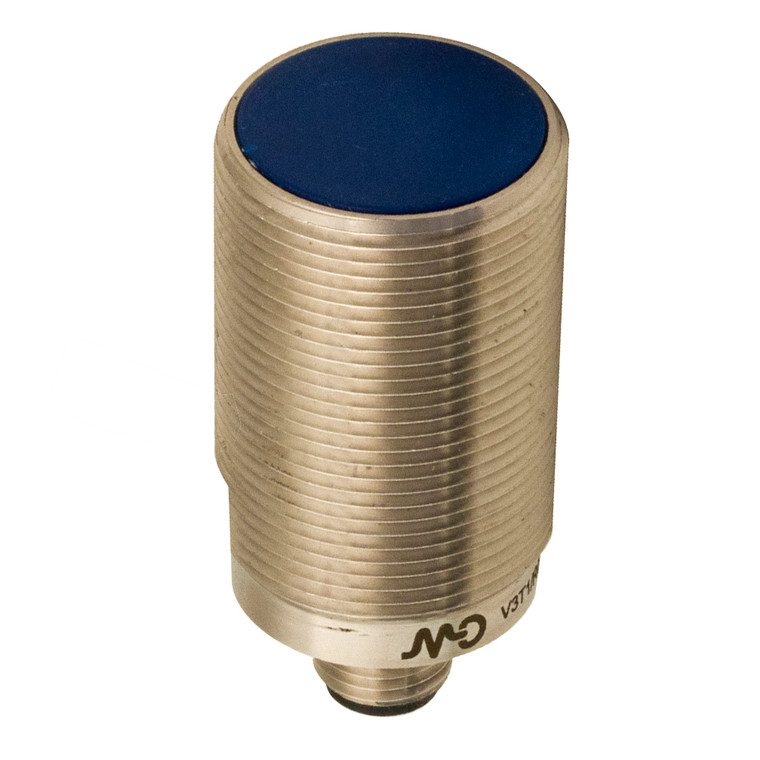

Inductive sensor M30, shielded, 1/2-20UNF plug cable exit, NC (Vac)-NC/NO (Vdc)
- Nominal sensing distance:
- 12mm
- Operanting distance:
- 0 9,7mm
- Standard target:
- 36x36mm FE360
- Correction Factor:
- copper: 0,42 / aluminium: 0,48 / brass: 0,53 / stainless steel: 0,83
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard flush mount
- Functions:
- Proximity
- Output type:
- MOSFET
- Output Function:
- NC (Vac) - NC/NO (Vdc)
- Switching frequency:
- 25Hz (AC) - 250Hz (DC)
- Operating Voltage:
- 20...250Vac/50...60Hz...20...250Vdc
- Load current:
- 5 140ma(Vac) - 5 200mA (Vdc)
- Leakage current:
- ? 1mA (Vac) - ? 0,7mA (Vdc)
- Output voltage drop:
- ? 7,5V (Vac) - ? 8V (Vdc)
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ?100ms
- Short-circuit protection:
- Yes
- Impulsive Overvoltage Protection:
- Yes
- Inrush current:
- 600mA/150ms (AC/DC)
- 0,1µF @Vmax - 1µF @Vmin:
- 1µF @Vmax - 1µF @Vmin
- Mounting:
- Shielded
- Weight:
- 120g
- Housing Material:
- Nickel-plated brass
- Connections:
- ½" - 20UNF plug
- Active Head Material:
- PA4T
- Tightening torque:
- 40Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE cULus
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
