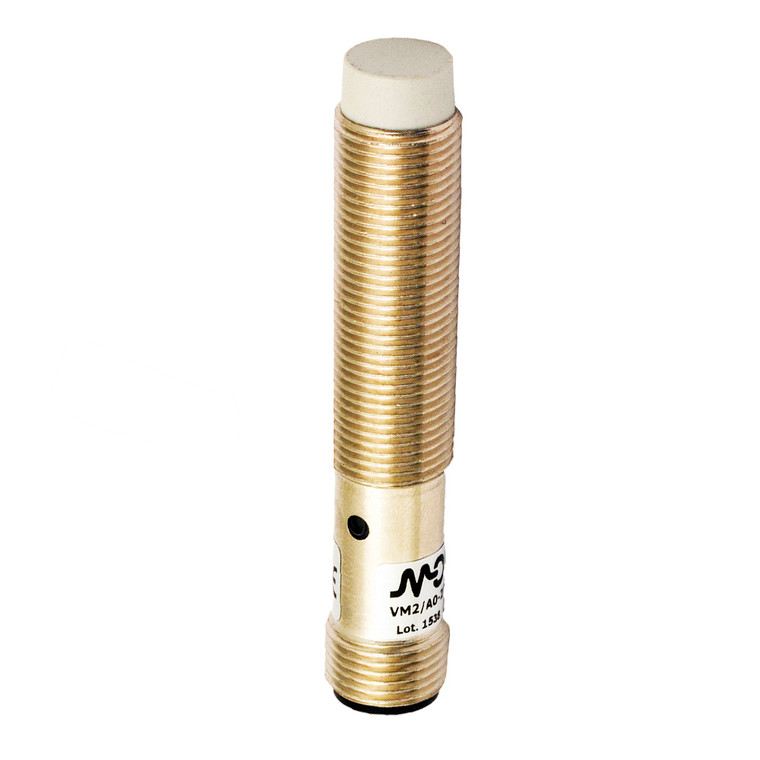

Datasensing VM2/A0-1H Sensors
Datasensing
$83.95
The Datasensing VM2/A0-1H Sensors are high-performance inductive sensors designed for precision and reliability. Featuring a nominal sensing distance of 2mm and an operating distance of 0 to 1.62mm, these sensors are ideal for detecting standard targets of 12x12mm FE360. With a robust IP67 protection degree, they are suitable for harsh environments, offering multivoltage operation from 20 to 253 Vac. The sensors are equipped with a TRIAC output type and NO output function, ensuring efficient proximity detection with a switching frequency of 25Hz.
Constructed with a durable nickel-plated brass housing and an active head made of PBT, the VM2/A0-1H sensors are designed for longevity and stability. They feature a yellow LED indicator for output state, providing clear visual feedback. The sensors are shielded for enhanced performance and come with an M12 plug connection for easy installation. With a thermal drift of Sr less than 10% and repeat accuracy under 5%, these sensors deliver consistent and reliable performance.
The VM2/A0-1H sensors are CE and UR approved, ensuring compliance with international standards. They are also EMC compatible with IEC 60947-5-2, and have been tested for shocks and vibrations according to IEC 60068-2-6 and IEC 60068-2-27 standards. Supplied with two M12x1 nuts, these sensors are ready for immediate deployment in a variety of industrial applications.
- Nominal sensing distance:
- 2mm
- Operanting distance:
- 0 1,62mm
- Standard target:
- 12x12mm FE360
- Correction Factor:
- copper: 0,40 / aluminium: 0,50 / brass: 0,55 / stainless steel: 0,75
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M12 standard flush mount
- Functions:
- Proximity
- Output type:
- TRIAC
- Output Function:
- NO
- Switching frequency:
- 25Hz
- Operating Voltage:
- 20...250Vac/50...60Hz
- Load current:
- 5...300mA
- Leakage current:
- ? 1mA RMS max
- Output voltage drop:
- See curves
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 200ms
- Inrush current:
- 7A (Ton = 10ms)
- Mounting:
- Shielded
- Weight:
- 30g
- Housing Material:
- Nickel-plated brass
- Connections:
- M12 plug
- Active Head Material:
- PBT
- Tightening torque:
- 10Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M12
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M12x1
- Mechanical Protection:
- IP67
- 2D Files:
- View
- 3D Files:
- View
- CAD Files:
- View
- EU Declarations:
- View
- Catalog:
- View
