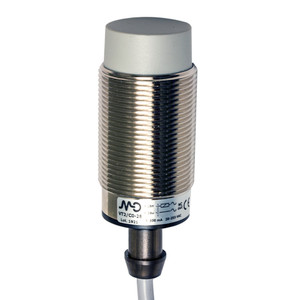

Datasensing VT2/A0-2B Sensors
Datasensing
$99.04
The Datasensing VT2/A0-2B Sensors are high-performance inductive sensors designed for reliable proximity detection. Featuring an M30 unshielded design, these sensors come with a 2-meter cable and an M12 plug cable exit for versatile connectivity. With a nominal sensing distance of 15mm and an operating distance of 0 to 12.1mm, they are ideal for various industrial applications. The sensors are equipped with IP67 protection, ensuring durability in harsh environments. They operate on a multivoltage range of 20 to 253 Vac, making them adaptable to different power sources.
Constructed with a nickel-plated brass housing and a PBT active head, these sensors are built to withstand temperatures ranging from -25°C to +70°C. The sensors feature a TRIAC output type with a normally open (NO) output function, supporting a load current of 5 to 300mA and a switching frequency of 25Hz. The yellow LED indicator provides a clear output state, while the sensors' EMC compatibility and CE UR approvals ensure compliance with industry standards.
The VT2/A0-2B Sensors offer a high repeat accuracy of less than 5% and a thermal drift of Sr under 10%, ensuring precise and consistent performance. With a correction factor for various materials, including copper, aluminum, brass, and stainless steel, these sensors are versatile for different target materials. The package includes two M30x1.5 nuts for secure mounting, and the sensors are designed to withstand shocks and vibrations as per IEC standards.
- Nominal sensing distance:
- 15mm
- Operanting distance:
- 0 12,1mm
- Standard target:
- 45x45mm FE360
- Correction Factor:
- copper: 0,45/ aluminium: 0,50 / brass: 0,60 / stainless steel: 0,80
- Thermal drift of Sr:
- < 10%
- Repeat Accuracy:
- < 5% (UB 24V Ta=23°C ±5°C)
- Hysteresis:
- 1 20%
- Description:
- M30 standard no-flush mount
- Functions:
- Proximity
- Output type:
- TRIAC
- Output Function:
- NO
- Switching frequency:
- 25Hz
- Operating Voltage:
- 20...250Vac/50...60Hz
- Load current:
- 5...300mA
- Leakage current:
- ? 1mA RMS max
- Output voltage drop:
- See curves
- Max ripple content:
- ? 10%
- LED indicators:
- Yellow LED output state
- Time delay before availability:
- ? 200ms
- Inrush current:
- 7A (Ton = 10ms)
- Mounting:
- Unshielded
- Weight:
- 100g
- Housing Material:
- Nickel-plated brass
- Connections:
- 2m PVC cable with tang
- Active Head Material:
- PBT
- Tightening torque:
- 50Nm
- Material:
- Nickel-plated brass
- Diameter/Dimension:
- M30
- Approvals:
- CE UR
- EMC compatibility:
- IEC 60947-5-2
- Shocks and vibrations:
- Vibration IEC 60068-2-6 / Shock IEC 60068-2-27
- Degree of protection:
- IP67
- Supplied Accessories:
- 2 nuts M30x1.5
- Mechanical Protection:
- IP67
