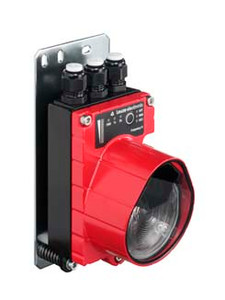

Leuze DDLS 200/120.2-50-H Optical data transmission
Leuze
$9,056.00

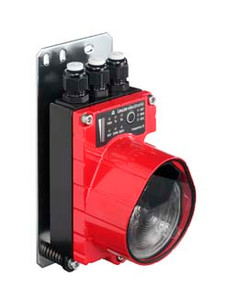

The Leuze DDLS 200/120.2-50-H is an optical data transmission receiver unit designed for contactless, wear-free data transfer to and from moving machinery, operating over a working range of 200 to 120,000 mm with a transmitter opening angle of 1°. It supports CANopen interface protocols, features a supply voltage of 1830 V DC, and is pre-mounted on a mounting plate for straightforward integration in industrial environments. This robust system uses LED-based parallel light axes immune to reflective surfaces, making it suitable for applications in manufacturing, cranes, and rotating equipment requiring reliable data transmission up to 120 m.
Documentation
- Technical Datasheet: https://www.leuze.com/en/int/products/data-transmission-systems/ddls-200/ddls-200-120-2-50-h-datasheet.pdf
- Operating Instructions: https://www.leuze.com/en/int/products/data-transmission-systems/ddls-200/ddls-200-120-2-50-h-manual.pdf
- CAD Data: https://www.leuze.com/en/int/products/data-transmission-systems/ddls-200/ddls-200-120-2-50-h-cad.zip
- Product Catalog Page: https://www.leuze.com/en/int/products/data-transmission-systems/ddls-200/
- Series:
- DDLS 200
- Special version:
- Heating,Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 120,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F2
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- CANopen, DeviceNet
- Transmission speed:
- 10 ... 1,000 kBit/s
- Transmission speed:
- 125 ... 500 kBit/s
- Number of connections:
- 3 Piece(s)
- No. of pins:
- 8 -pin
- No. of pins:
- 10 -pin
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -30 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
