Leuze DDLS 200/200.1-10-M12 Optical data transmission
Leuze
$4,968.00

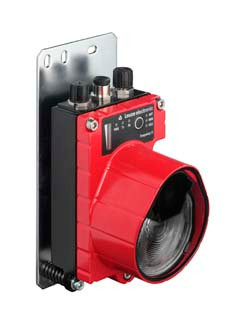

The Leuze DDLS 200/200.1-10-M12 is an optical data transmitter from the DDLS 200 series, utilizing infrared parallel light axes for reliable data transmission over a working range of 0.2 to 200 meters. It operates on 18-30 VDC supply, supports interfaces such as PROFIBUS DP/RS 485 up to 1.5 Mbps, DeviceNet/CANopen, and features M12 5-pin connectors for straightforward integration. Housed in an aluminum diecast enclosure weighing approximately 1.2 kg with IP65 protection, it withstands vibrations per EN 60068-2-6 and operates from -5°C to +50°C, with options for heating to extend to -30°C; includes membrane buttons, status LEDs, and a bar graph for receive level indication.
Documentation
- Technical Datasheet: https://www.leuze.com/en-us/ddls-200-200.1-10-m12/50106025
- Operating Instructions: https://leuze.com.ua/downloads/products/ddls/TD_DDLS200_en_50036440.pdf
- Product Catalog Page: https://www.leuze.com/en-us/products/optical-data-transmission/ddls-200
- Dimensioned Drawings: https://www.leuze.com/en-us/ddls-200-200.1-10-m12/dimensions
- Series:
- DDLS 200
- Special version:
- Not influenced by reflective surfaces,Operation of parallel light axes
- Working range:
- 200 ... 200,000 mm
- Light source:
- LED, Infrared
- Transmission frequency:
- F1
- Opening angle:
- 1 °
- Supply voltage UB:
- 18 ... 30 V, DC
- Number of digital switching inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- PROFIBUS DP, RS 485
- Transmission speed:
- 0.0096 ... 1.5 Mbit/s
- Number of connections:
- 3 Piece(s)
- Designation on device:
- BUS IN
- Designation on device:
- Bus OUT
- Type:
- Female
- Designation on device:
- PWR
- Encoding:
- A-coded
- Dimension (W x H x L):
- 89.25 mm x 196.5 mm x 111.8 mm
- Housing material:
- Metal
- Net weight:
- 1,245 g
- Type of display:
- Bar graph,LED
- Ambient temperature, operation:
- -5 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Approvals:
- c UL US
- Test procedure for EMC in accordance with standard:
- EN 61000-6-2:2005,EN 61000-6-4:2001
- Test procedure for noise in accordance with standard:
- EN 60068-2-64
- Test procedure for oscillation in accordance with standard:
- EN 60068-2-6
- Test procedure for shock in accordance with standard:
- EN 60068-2-27,EN 60068-2-29
- Customs tariff number:
- 84718000
- ECLASS 5.1.4:
- 19039001
- ECLASS 8.0:
- 19179090
- ECLASS 9.0:
- 19179090
- ECLASS 10.0:
- 19170506
- ECLASS 11.0:
- 19170506
- ECLASS 12.0:
- 19170506
- ECLASS 13.0:
- 19170506
- ECLASS 14.0:
- 19170506
- ECLASS 15.0:
- 19170506
- ETIM 5.0:
- EC000515
- ETIM 6.0:
- EC000515
- ETIM 7.0:
- EC000515
- ETIM 8.0:
- EC000515
- ETIM 9.0:
- EC000515
- ETIM 10.0:
- EC000515
