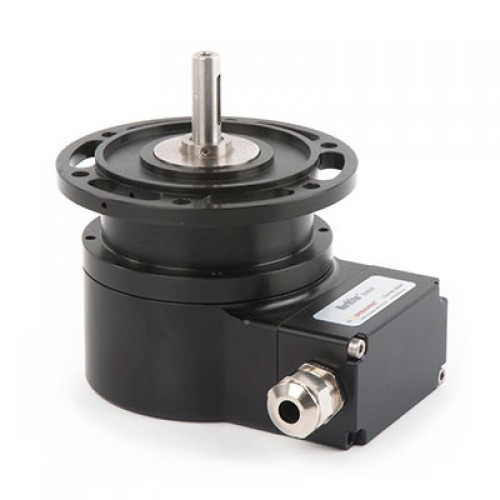

Dynapar HD35R20480P00 HD35R Harsh-Duty Optical Encoder
Dynapar
$2,008.00
The HD35R Harsh-Duty Optical Encoder is ideally suited to demanding environments like wind power generation, steel mills, and general heavy machinery. With it's IEC flange and shaft configuration, the HD35R is a great US-made upgrade from traditional European manufacturers. It features advanced optical ASIC technology and provides long-term resistance to dust, water, heat, mechanical shock, vibration and more. The HD35R offers accuracy, reliability, durability above all else for challenging environmental conditions.
- Series:
- HD35R
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- 100mm IEC "Euro" Flange
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 4
- Connection Location:
- Radial
- Connection Type:
- Conduit Box
- Disk Material:
- Aluminum
- Flange Material:
- Anodized Aluminum
- Maximum Operating Speed (RPM):
- 6000
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 11
- Shaft Type:
- Shafted
- Special Shaft Feature:
- 4mm Key
- Starting Torque (Ncm):
- 8.47
- Termination:
- Terminal Box M20 Gland
- Duty Cycle:
- 45-55%
- Incremental Signals:
- A, A', B, B', Z, Z'
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- 7272
- Maximum Frequency Response (KHz):
- 125
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 2048
- Reverse Polarity Protection:
- Yes
- Approvals / Certifications:
- [CE, ROHS]
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP67
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 100
- Maximum Storage Temperature (°C):
- 100
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 400G, 6msec
- Vibration Resistance:
- 20G, 5-3000Hz
- Datasheet:
- View
