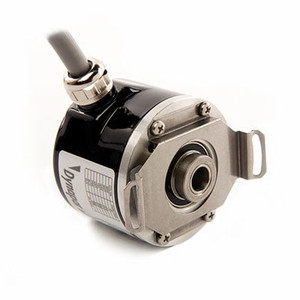

Dynapar H230060022514 Series H20 Hub Shaft Encoder
The Dynapar brand Series H20 Hub Shaft encoder is a rugged, reliable and economical encoder for direct coupling to motors or machine shafts.
- Series:
- H20HS
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Mounting Configuration:
- Servo
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 3.1
- Connection Location:
- Axial
- Connection Type:
- Connector
- Disk Material:
- Mylar
- Flange Material:
- Aluminum
- Housing Material:
- Aluminum
- Maximum Operating Speed (RPM):
- 5000
- Shaft / Bore Material:
- Aluminum
- Shaft / Bore Size (mm):
- 15.875
- Shaft Type:
- Hub Shaft
- Starting Torque (Ncm):
- 2.12
- Termination:
- 10 Pin MS
- Duty Cycle:
- 45-55%
- Incremental Signal Format:
- A Leads B CCW viewed from Shaft end of Encoder
- Incremental Signals:
- A, B, Z
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- 7273
- Maximum Frequency Response (KHz):
- 100
- Output Signal:
- Open Collector w/ 2.2K Ohm
- Resolution (PPR):
- 60
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP54
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 70
- Maximum Storage Temperature (°C):
- 90
- Minimum Operating Temperature (°C):
- 0
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 50G, 11msec
- Vibration Resistance:
- 20G, 5-2000Hz
