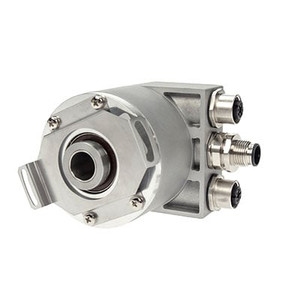

Dynapar AI25121233W2R AI25 EtherNet/IP Absolute Encoder
The AI25 is a rugged EtherNet/IP absolute encoder with up to 34 Bits combined resolution, IP67 protection, shafted or hub-shafted options and extreme shock & vibration rating. see pricing and download 3D models here!
- Series:
- AI25 EthernetIP
- Average leadtime:
- 10 Business Days
- Feedback Type:
- Absolute
- Interface:
- Ethernet/IP
- Mounting Configuration:
- Spring plate F
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 3.2
- Connection Location:
- Bus cover with 3x M12 connecto
- Housing Diameter (mm):
- 58
- Housing Material:
- Aluminium
- Moment Of Inertia:
- 3,8 x 10^-6 kgm²
- Radial Endplay Mounting:
- 0.2
- Revolution Count:
- 10000
- Revolution Short Term:
- 12000
- Shaft / Bore Material:
- Stainless Steel
- Shaft / Bore Size (mm):
- 9.52
- Shaft Type:
- Hub shaft open on one side
- Starting Torque (Ncm):
- 2
- Absolute Accuracy Type:
- ±36"
- Input Voltage:
- DC 7 - 30 V
- Output Code:
- Binary
- Repeatability Type:
- ±10"
- Resolution Multi Turn:
- 12 Bit
- Resolution Single Turn (Bits):
- 12
- Approvals / Certifications:
- [CE, c UL us (listed)]
- Housing Protection Level:
- IP65
- Maximum Operating Temperature (°C):
- 85
- Maximum Storage Temperature (°C):
- 85
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Shock Resistance:
- 4000 m/s² (6 ms)
- Vibration Resistance:
- 300 m/s² (10 - 2000 Hz)
- Datasheet:
- View
