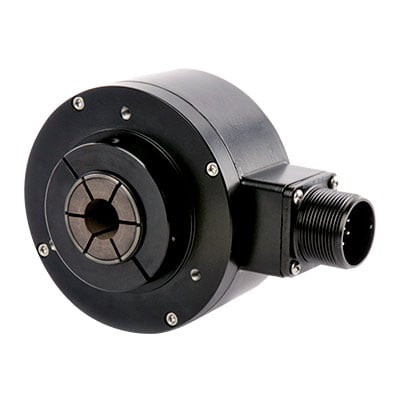

Dynapar HS35R2000730H HS35R Ruggedized Hollow-Shaft Encoder
Dynapar
$910.00
The HS35R series is the ruggedized version of the original vector-duty hollow-shaft encoder. With 400g shock rating, IP67 sealing, and wide -40ºC to 100ºC temperature range, the HS35R raises the bar on vector-duty encoder performance providing increased reliability and maximize equipment uptime in mill and heavy duty plant environments.
- Series:
- HS35R
- Average leadtime:
- 5 Business Days
- Feedback Type:
- Incremental
- Technology Sensing Type:
- Optical
- Weight (Pounds):
- 5.3
- Connection Location:
- Radial
- Connection Type:
- Connector
- Disk Material:
- Aluminum
- Fixing:
- Slotted tether (to fit standard AC motor fan cover)
- Flange Material:
- Powder Coated Aluminum
- Maximum Operating Speed (RPM):
- 6000
- Shaft / Bore Material:
- Aluminum
- Shaft / Bore Size (mm):
- 12.7
- Shaft Type:
- Hollow Shaft
- Special Shaft Feature:
- Electrically Isolated Shaft
- Starting Torque (Ncm):
- 5.65
- Termination:
- 5 Pin M12
- Duty Cycle:
- 45-55%
- Incremental Signals:
- A, B, Z
- Input Voltage:
- 5-26 VDC
- Line Driver Type:
- 7272
- Maximum Frequency Response (KHz):
- 125
- Output Signal:
- 5-26 VDC
- Resolution (PPR):
- 2000
- Reverse Polarity Protection:
- Yes
- Short Circuit Protection:
- Yes
- Approvals / Certifications:
- [CE, ROHS]
- Hazardous Area Rating:
- [None]
- Hazardous Area Rating Certification:
- [None]
- Housing Protection Level:
- IP67
- Humidity Non-Condensing (%):
- 98
- Maximum Operating Temperature (°C):
- 85
- Maximum Storage Temperature (°C):
- 100
- Minimum Operating Temperature (°C):
- -40
- Minimum Storage Temperature (°C):
- -40
- Noise Immunity Testing Specification:
- EN61326-1
- Shock Resistance:
- 400G, 6msec
- Vibration Resistance:
- 20G, 5-3000Hz
- Datasheet:
- View
