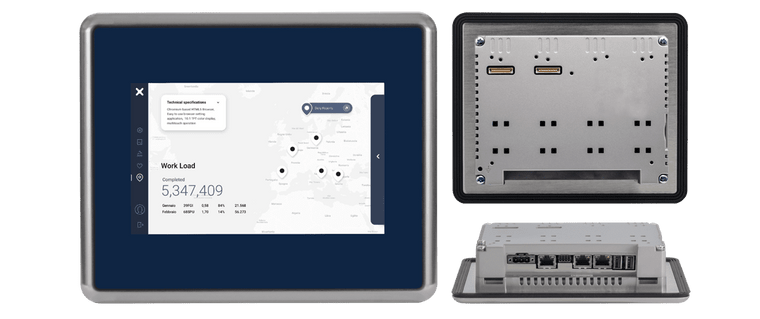

Exor eX707FB Hygienic Inox HMI 7" IP69

Exor eX707FB Hygienic Inox HMI 7" IP69

Exor
SKU:
eX707FB
$3,520.00
Condition:
New
Current Stock:
Description

The food & beverage and pharmaceutical sectors have stringent legislative requirements for production facilities, necessitating specialized equipment. EXOR has adapted its eX707 HMI device to meet these challenges by complying with CEI EN 60529 guidelines, focusing on eliminating food, grease, and product powder accumulation. The device features a highly polished stainless steel front, optimal frame angles for cleaning, and a high protection front panel rating of IP69, ensuring resistance to high-pressure, high-temperature water, and aggressive cleaning substances. This eliminates the need for costly protective cabinets, making it ideal for industries requiring high hygiene standards, such as food, pharmaceutical, and chemical sectors. The device also meets DIN EN1672-2 and EHEDG/FDA 21 CFR 177.2006 guidelines.

Additional Information
Display - Colors:
7“ TFT 16:9 LED - 16M
Resolution:
800x480, WVGA
Brightness:
500 Cd/m2 typ.
Dimming:
to 0%
Touchscreen:
Projected Capacitive, Multitouch
CPU:
32-bit RISC dual core - 800 MHz
Operating System:
Linux RT
Flash:
4 GB
RAM:
1 GB
RTC, RTC Back-up, Buzzer:
Yes
Ethernet port:
3 (port 0 - 10/100/1000, port 1 - 10/100, port 2 - 10/100)
USB port:
2 (Host V2.0, max. 500 mA)
Serial port:
1 (RS-232, RS-485, RS-422, software configurable) Max 3 serial ports using plug-in modules.
SD card:
Yes
Expansion:
2 slot for plug in modules
Power supply:
24 Vdc (10 to 32 Vdc)
Current Consumption:
0.7 A at 24 Vdc (max.)
Input Protection:
Electronic
Battery:
Rechargeable Lithium battery, not user-replaceable
Operating Temperature:
-20° to +60 °C (vertical installation) Plug-in modules and USB devices may limit max temperature to +50 °C
Storage Temp:
-20°C to +70°C
Operating / Storage Humidity:
5-85% RH, non condensing
Protection Class:
IP69 (front), IP20 (rear) Type: 12, 4X
Faceplate LxH:
217x177 mm (8.54x6.96“)
Cutout AxB:
176x136 mm (6.93x5.35“)
Depth D+T:
45+10 mm (1.77+0.4”)
Weight:
2.5 Kg
CE:
Electromagnetic Compatibility Directive 2014/30/EU (EMC)
UL:
cULus: UL61010-1 / UL61010-2-201
RCM:
Yes
Technical Documents:
View
