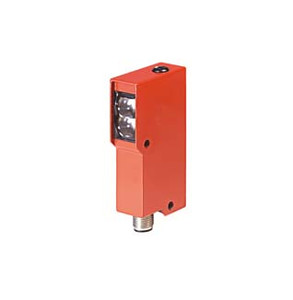

Leuze FRKR 92/4-300 L Diffuse sensor with background suppression
Leuze
$1,338.39
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze FRKR 92/4-300 L Diffuse sensor with background suppression
FRKR 92/4-300 L Diffuse sensor with background suppression
- Series:
- 92
- Operating principle:
- Diffuse reflection principle with background suppression
- Operating range:
- Guaranteed operating range
- Operating range, white 90%:
- 0.005 ... 0.3 m
- Operating range, gray 18%:
- 0.015 ... 0.28 m
- Operating range, black 6%:
- 0.02 ... 0.26 m
- Operating range limit, white 90%:
- 0.005 ... 0.44 m
- Operating range limit, gray 18%:
- 0.015 ... 0.39 m
- Operating range limit, black 6%:
- 0.02 ... 0.36 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Red
- Type of light spot geometry:
- Round
- Supply voltage UB:
- 10 ... 30 V, DC
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, PNP
- Switching principle:
- Light/dark switchable
- Switching frequency:
- 500 Hz
- Response time:
- 1 ms
- Readiness delay:
- 100 ms
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 4 -pin
- Dimension (W x H x L):
- 20 mm x 80 mm x 42.2 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 140 g
- Ambient temperature, operation:
- -20 ... 60 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270904
- ECLASS 8.0:
- 27270904
- ECLASS 9.0:
- 27270904
- ECLASS 10.0:
- 27270904
- ECLASS 11.0:
- 27270904
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC002719
- ETIM 6.0:
- EC002719
- ETIM 7.0:
- EC002719
- ETIM 8.0:
- EC002719
- ETIM 9.0:
- EC002719
- ETIM 10.0:
- EC002719
- Declaration of Conformity:
- View
