Leuze

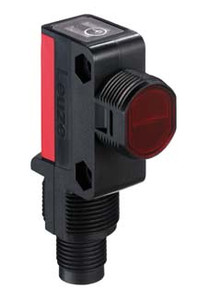

Leuze FT28.3/2N-M12 Energetic diffuse sensor

SKU:

FT28.3/2N-M12

UPC:

MPN:

50122593

Condition:

New

Series:

28

Operating principle:

Diffuse reflection principle

Operating range:

Guaranteed operating range

Operating range, white 90%:

0.001 ... 0.21 m

Operating range, gray 50%:

0.002 ... 0.185 m

Operating range, gray 18%:

0.003 ... 0.145 m

Operating range, black 6%:

0.005 ... 0.125 m

Operating range limit, white 90%:

0 ... 0.25 m

Operating range limit, gray 50%:

0.002 ... 0.225 m

Operating range limit, gray 18%:

0.003 ... 0.175 m

Operating range limit, black 6%:

0.005 ... 0.15 m

Operating range limit:

Typical operating range

Light source:

LED, Red

Wavelength:

620 nm

LED group:

Exempt group (in acc. with EN 62471)

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 20 mA

Number of digital switching outputs:

2 Piece(s)

Switching principle:

Light switching

Switching principle:

Dark switching

Switching frequency:

500 Hz

Response time:

1 ms

Readiness delay:

300 ms

Function:

Signal OUT,Voltage supply

Type of connection:

Connector

Thread size:

M12

Type:

Male

Material:

Plastic

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (W x H x L):

15 mm x 46.5 mm x 31.8 mm

Thread size:

M18

Housing material:

Plastic

Plastic housing:

ABS

Lens cover material:

Plastic

Net weight:

25 g

Housing color:

Black,Red

Type of display:

LED

Operational controls:

Teach button

Ambient temperature, operation:

-40 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270903

ECLASS 8.0:

27270903

ECLASS 9.0:

27270903

ECLASS 10.0:

27270903

ECLASS 11.0:

27270903

ECLASS 12.0:

27270903

ECLASS 13.0:

27270903

ECLASS 14.0:

27270903

ECLASS 15.0:

27270903

ETIM 5.0:

EC001821

ETIM 6.0:

EC001821

ETIM 7.0:

EC001821

ETIM 8.0:

EC001821

ETIM 9.0:

EC001821

ETIM 10.0:

EC001821
