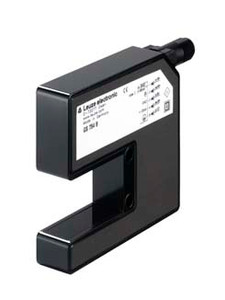

Leuze GS 754B/D3-27-S12 Fork photoelectric sensor
Leuze
$1,433.90
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze GS 754B/D3-27-S12 Fork photoelectric sensor
GS 754B/D3-27-S12 Fork photoelectric sensor
- Series:
- 754
- Application:
- Detection of transparent objects,Film detection > 0.1 mm
- Measurement field length:
- 25 mm
- Light source:
- LED, Infrared
- System resolution:
- a: 0.1 mm (mode 1 ... 5),b: 0.014 mm (Mode 7)
- Protective circuit:
- Overvoltage protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Type:
- RS 422
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 5 -pin
- Mouth width:
- 27 mm
- Mouth depth:
- 42 mm
- Dimension (W x H x L):
- 19.4 mm x 82.1 mm x 91 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Plastic / PMMA
- Net weight:
- 270 g
- Type of configuration:
- Software
- Ambient temperature, operation:
- -20 ... 50 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270909
- ECLASS 8.0:
- 27270909
- ECLASS 9.0:
- 27270909
- ECLASS 10.0:
- 27270909
- ECLASS 11.0:
- 27270909
- ECLASS 12.0:
- 27270909
- ECLASS 13.0:
- 27270909
- ECLASS 14.0:
- 27270909
- ECLASS 15.0:
- 27270909
- ETIM 5.0:
- EC002720
- ETIM 6.0:
- EC002720
- ETIM 7.0:
- EC002720
- ETIM 8.0:
- EC002720
- ETIM 9.0:
- EC002720
- ETIM 10.0:
- EC002720
- Datasheet:
- View
- Declaration of Conformity:
- View
