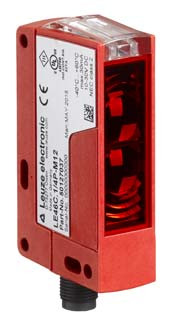

Leuze HT46C/4X-M12 Diffuse sensor with background suppression

SKU:

HT46C/4X-M12

UPC:

MPN:

50127050

Condition:

New

Series:

46C

Operating principle:

Diffuse reflection principle with background suppression

Special version:

AS-Interface, connection via coupling module

Black-white error:

< 10% up to 1200 mm

Operating range:

Guaranteed operating range

Operating range, white 90%:

0.005 ... 3 m

Operating range, gray 18%:

0.02 ... 2 m

Operating range, black 6%:

0.05 ... 1.5 m

Operating range limit:

0.005 ... 3 m

Operating range limit:

Typical operating range

Adjustment range:

120 ... 3,000 mm

Beam path:

Focused

Light source:

LED, Red

Wavelength:

630 nm

LED group:

Exempt group (in acc. with EN 62471)

Type of light spot geometry:

Rectangular

Focus:

Fixed

Protective circuit:

Polarity reversal protection,Short circuit protected,Transient protection

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 30 mA

Number of digital switching outputs:

1 Piece(s)

Switching element:

Transistor, PNP

Switching principle:

Light switching

Switching frequency:

250 Hz

Response time:

2 ms

Readiness delay:

300 ms

Function:

Signal OUT,Voltage supply

Type of connection:

Connector

Thread size:

M12

Type:

Male

Material:

Plastic

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (W x H x L):

20.5 mm x 76.3 mm x 44 mm

Housing material:

Plastic

Plastic housing:

PC-PBT

Lens cover material:

Plastic / PMMA

Net weight:

60 g

Housing color:

Red

Type of fastening:

Through-hole mounting,Via optional mounting device

Compatibility of materials:

ECOLAB

Type of display:

LED

Operational controls:

Multiturn potentiometer

Function of the operational control:

Range adjustment

Ambient temperature, operation:

-40 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67,IP 69K

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270904

ECLASS 8.0:

27270904

ECLASS 9.0:

27270904

ECLASS 10.0:

27270904

ECLASS 11.0:

27270904

ECLASS 12.0:

27270903

ECLASS 13.0:

27270903

ECLASS 14.0:

27270903

ECLASS 15.0:

27270903

ETIM 5.0:

EC002719

ETIM 6.0:

EC002719

ETIM 7.0:

EC002719

ETIM 8.0:

EC002719

ETIM 9.0:

EC002719

ETIM 10.0:

EC002719
