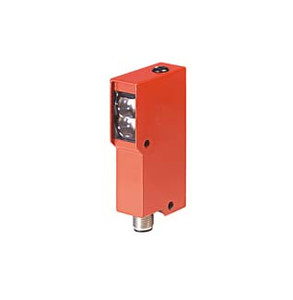

Leuze IPRK 92/4 L Polarized retro-reflective photoelectric sensor
Leuze
$940.70
IPRK 92/4 L Polarized retro-reflective photoelectric sensor
- Series:
- 92
- Operating principle:
- Reflection principle
- Special version:
- Warning output
- Operating range:
- 0.2 ... 8.5 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0.2 ... 12.5 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Red
- Wavelength:
- 660 nm
- LED group:
- 1
- Type of light spot geometry:
- Round
- Supply voltage UB:
- 10 ... 30 V, DC
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light/dark switchable
- Switching principle:
- UB switching
- Function:
- Warning output
- Switching frequency:
- 500 Hz
- Response time:
- 1 ms
- Readiness delay:
- 100 ms
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 5 -pin
- Dimension (W x H x L):
- 20 mm x 80 mm x 42.2 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 140 g
- Housing color:
- Red
- Ambient temperature, operation:
- -20 ... 60 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270902
- ECLASS 8.0:
- 27270902
- ECLASS 9.0:
- 27270902
- ECLASS 10.0:
- 27270902
- ECLASS 11.0:
- 27270902
- ECLASS 12.0:
- 27270902
- ECLASS 13.0:
- 27270902
- ECLASS 14.0:
- 27270902
- ECLASS 15.0:
- 27270902
- ETIM 5.0:
- EC002717
- ETIM 6.0:
- EC002717
- ETIM 7.0:
- EC002717
- ETIM 8.0:
- EC002717
- ETIM 9.0:
- EC002717
- ETIM 10.0:
- EC002717
- Datasheet:
- View
- Declaration of Conformity:
- View
