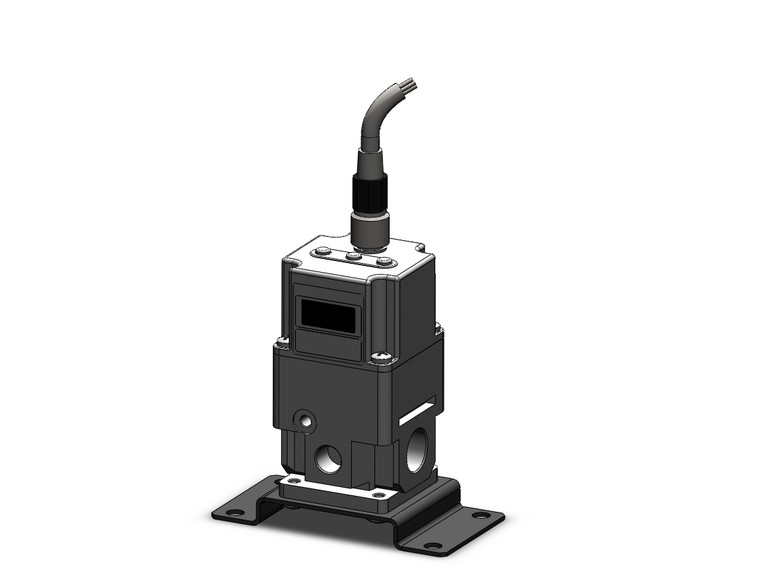

SMC ITV2030-013BS ITV1000/2000/3000 Series Electro-pneumatic Regulator
SMC
$382.80
The SMC ITV2030-013BS is part of the ITV1000/2000/3000 Series Electro-pneumatic Regulators, designed for precise control of air pressure in response to electric signals. This regulator offers stepless control, ensuring smooth and accurate adjustments. With a sensitivity of 0.2 kPa for the 100 kPa specification, it provides exceptional precision. The linearity is maintained at ±1% or less of full scale, while the hysteresis is kept at 0.5% or less, ensuring reliable performance. For seamless integration into various systems, it supports multiple communication protocols including CC-Link, DeviceNetTM, PROFIBUS DP, and RS-232C. Ideal for applications requiring high accuracy and reliability in pneumatic control.
- Type:
- 2000 type
- Pressure Range:
- 0.5 MPa
- Power Supply Voltage:
- 24 VDC
- Input Signal:
- Current Type 4 To 20 Ma DC (Sink Type)
- Monitor Output:
- Analog Output 1 To 5 VDC
- Thread Type:
- Rc
- Port Size:
- 3/8
- Bracket:
- Flat Bracket
- Cable connector:
- Straight Type 3 m
- Pressure display unit:
- MPa
- Made To Order:
- Standard
- CE-compliant:
- Standard Type
