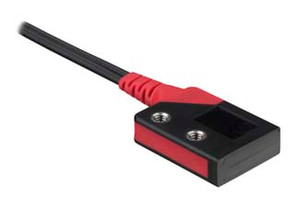

Leuze KF-ET-50ML-20 Plastic fiber optics type diffuse reflective
Leuze
$396.06
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze KF-ET-50ML-20 Plastic fiber optics type diffuse reflective
KF-ET-50ML-20 Plastic fiber optics type diffuse reflective
- Series:
- KF
- Operating principle:
- Diffuse reflection principle
- Area of application:
- General applications
- Special version:
- Area detection
- Light beam exit:
- Lateral
- Fiber core:
- Mixed fiber configuration,Multiple fiber core
- Fiber core material:
- Plastic
- aktiver Faserdurchmesser:
- 0.265 mm
- Active fiber diameter:
- 16 Piece(s)
- Operating range with LV461:
- 0 ... 70 mm
- Operating range with LV462:
- 0 ... 120 mm
- Operating range with LV463:
- 0 ... 210 mm
- Operating range with LV463.XV:
- 0 ... 315 mm
- Operating range with LV463.XR:
- 0 ... 380 mm
- Operating range with LV463I.XR:
- 0 ... 570 mm
- Minimum object diameter:
- 2 mm
- Design:
- Cubic
- Outer diameter:
- 2.2 mm
- Head material:
- Plastic
- Type:
- Plastic fiber optics (KF)
- Fiber length:
- 2,000 mm
- Light field width:
- 46.5 mm
- Fiber sheathing material:
- PE
- Fastening of the probe:
- 2 x 3.2mm
- Smallest bending radius (moving):
- R25
- Laying:
- standard
- Damping at ?:
- 650nm=210 dB/km
- Ambient temperature, operation:
- -55 ... 70 C
- Customs tariff number:
- 90011090
- ECLASS 5.1.4:
- 27270905
- ECLASS 8.0:
- 27270905
- ECLASS 9.0:
- 27270905
- ECLASS 10.0:
- 27270905
- ECLASS 11.0:
- 27273606
- ECLASS 12.0:
- 27273606
- ECLASS 13.0:
- 27273606
- ECLASS 14.0:
- 27273606
- ECLASS 15.0:
- 27273606
- ETIM 5.0:
- EC002651
- ETIM 6.0:
- EC002651
- ETIM 7.0:
- EC002651
- ETIM 8.0:
- EC002651
- ETIM 9.0:
- EC002651
- ETIM 10.0:
- EC002651
- Datasheet:
- View
