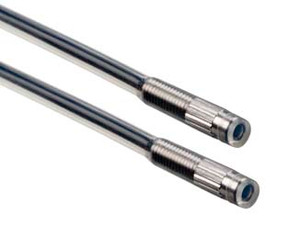

Leuze KF-LP-FU92-520-Q Plastic fiber optics for throughbeam operation
Leuze
$809.19
KF-LP-FU92-520-Q Plastic fiber optics for throughbeam operation
- Series:
- KF
- Operating principle:
- Throughbeam principle
- Device type:
- Transmit and receive fiber
- Area of application:
- Oil and chemical resistant
- Light beam exit:
- Front
- Fiber core:
- Single fiber core
- Fiber core material:
- Plastic
- aktiver Faserdurchmesser:
- 1 mm
- Operating range with LV461:
- 0 ... 600 mm
- Operating range with LV462:
- 0 ... 1,000 mm
- Operating range with LV463:
- 0 ... 1,800 mm
- Operating range with LV463.XV:
- 0 ... 2,700 mm
- Operating range with LV463.XR:
- 0 ... 3,250 mm
- Operating range with LV463I.XR:
- 0 ... 4,860 mm
- Minimum object diameter:
- 0.5 mm
- Design:
- Cylindrical
- Outer diameter:
- 4 mm
- Head material:
- Plastic
- Type:
- Plastic fiber optics (KF)
- Fiber length:
- 2,000 mm
- Fiber sheathing material:
- PTFE
- Fastening of the probe:
- 5 mm
- Smallest bending radius (moving):
- R25
- Sleeve length at optical outlet:
- 22 mm
- Metric thread on fiber optic sleeve:
- No
- Laying:
- standard
- Damping at ?:
- 650nm=210 dB/km
- Ambient temperature, operation:
- -55 ... 70 C
- Customs tariff number:
- 90011090
- ECLASS 5.1.4:
- 27270905
- ECLASS 8.0:
- 27270905
- ECLASS 9.0:
- 27270905
- ECLASS 10.0:
- 27270905
- ECLASS 11.0:
- 27273606
- ECLASS 12.0:
- 27273606
- ECLASS 13.0:
- 27273606
- ECLASS 14.0:
- 27273606
- ECLASS 15.0:
- 27273606
- ETIM 5.0:
- EC002651
- ETIM 6.0:
- EC002651
- ETIM 7.0:
- EC002651
- ETIM 8.0:
- EC002651
- ETIM 9.0:
- EC002651
- ETIM 10.0:
- EC002651
- Datasheet:
- View
