Leuze

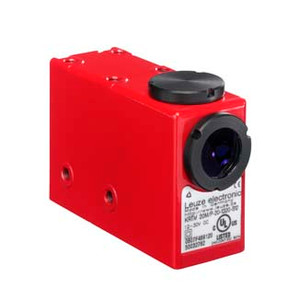

Leuze KRTM 20M/P-12-6420-S12 Contrast sensor

SKU:

KRTM 20M/P-12-6420-S12

UPC:

MPN:

50116474

Condition:

New

Series:

20

Special version:

Autocollimation,Synchronization input,Time function

Operating range:

12 mm ± 1 mm

Beam path:

Focused

Light source:

LED, RGB

Light spot size [at sensor distance]:

1 mm x 3 mm

Light spot orientation:

Vertical

Type of light spot geometry:

Rectangular

Light beam exit:

On face

Focus:

Fixed

Supply voltage UB:

12 ... 30 V, DC

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 35 mA

Number of teach inputs:

1 Piece(s)

Teach process:

Dynamic 2-point

Number of digital switching outputs:

1 Piece(s)

Switching element:

Transistor, PNP

Switching principle:

Light/dark switchable

Switching frequency:

50,000 Hz

Type of connection:

Connector

Thread size:

M12

Material:

Stainless steel

No. of pins:

5 -pin

Encoding:

A-coded

Design:

Cubic

Dimension (W x H x L):

30 mm x 80 mm x 53 mm

Housing material:

Metal

Metal housing:

Zinc

Net weight:

300 g

Type of display:

LED

Operational controls:

Membrane keyboard

Ambient temperature, operation:

-25 ... 60 °C

Degree of protection:

IP 67

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270906

ECLASS 8.0:

27270906

ECLASS 9.0:

27270906

ECLASS 10.0:

27270906

ECLASS 11.0:

27270906

ECLASS 12.0:

27270906

ECLASS 13.0:

27270906

ECLASS 14.0:

27270906

ECLASS 15.0:

27270906

ETIM 5.0:

EC001820

ETIM 6.0:

EC001820

ETIM 7.0:

EC001820

ETIM 8.0:

EC001820

ETIM 9.0:

EC001820

ETIM 10.0:

EC001820

Datasheet:

View

Declaration of Conformity:

View
