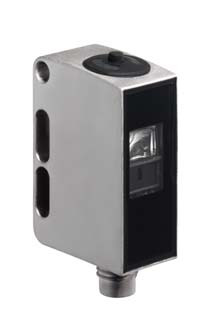

Leuze KRTM 55/4.1221,200-S12 Contrast sensor
Leuze
$606.05
KRTM 55/4.1221,200-S12 Contrast sensor
- Series:
- 55
- Special version:
- Teach input,Time function
- Operating range:
- 13 mm ± 2 mm
- Beam path:
- Focused
- Light source:
- LED, RGB
- Light spot size [at sensor distance]:
- 1.5 mm x 6.5 mm
- Light spot orientation:
- Vertical
- Type of light spot geometry:
- Rectangular
- Light beam exit:
- Front
- Focus:
- Fixed
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 35 mA
- Number of teach inputs:
- 1 Piece(s)
- Teach process:
- Dynamic 2-point
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, PNP
- Switching principle:
- Light/dark switchable
- Switching frequency:
- 10,000 Hz
- Type of connection:
- Cable with connector
- Cable length:
- 200 mm
- Thread size:
- M12
- Material:
- Stainless steel
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Design:
- Cubic
- Dimension (W x H x L):
- 14 mm x 35.5 mm x 25 mm
- Housing material:
- Stainless steel
- Stainless steel housing:
- AISI 316L
- Net weight:
- 50 g
- Compatibility of materials:
- CleanProof+,ECOLAB
- Type of display:
- LED
- Operational controls:
- Teach button
- Ambient temperature, operation:
- -30 ... 55 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270906
- ECLASS 8.0:
- 27270906
- ECLASS 9.0:
- 27270906
- ECLASS 10.0:
- 27270906
- ECLASS 11.0:
- 27270906
- ECLASS 12.0:
- 27270906
- ECLASS 13.0:
- 27270906
- ECLASS 14.0:
- 27270906
- ECLASS 15.0:
- 27270906
- ETIM 5.0:
- EC001820
- ETIM 6.0:
- EC001820
- ETIM 7.0:
- EC001820
- ETIM 8.0:
- EC001820
- ETIM 9.0:
- EC001820
- ETIM 10.0:
- EC001820
- Datasheet:
- View
