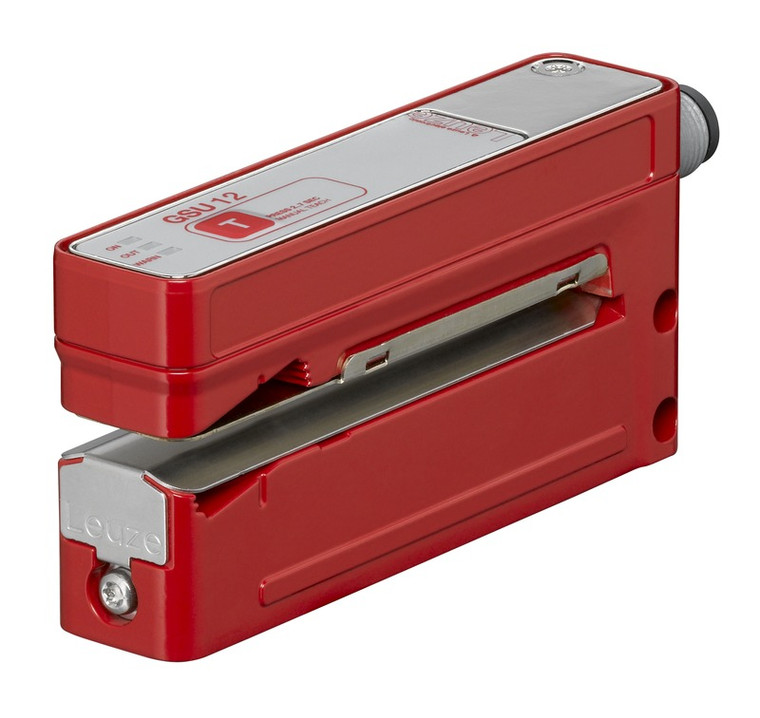

Leuze GSU12/6GX.3-M12 Ultrasonic fork sensor
Leuze
$638.61
GSU12/6GX.3-M12 Ultrasonic fork sensor
- Series:
- 12
- Principle of physics:
- Ultrasonics
- Application:
- Detection of non-transparent labels,Detection of transparent labels
- Label width, min.:
- 4 mm
- Label gap, min.:
- 2 mm
- Medium:
- Transparent and not transparent
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 12 ... 30 V, DC
- Residual ripple:
- 0 ... 10 %, From UB
- Open-circuit current:
- 0 ... 60 mA, Typical value
- Number of digital switching outputs:
- 2 Piece(s)
- Type:
- Digital switching output
- Voltage type:
- DC
- Switching current, max.:
- 100 mA
- Switching voltage:
- high: ?(UB-2V),low: ? 2 V
- Load capacity:
- 0.01 µF
- Switching principle:
- PNP light switching (switching in the gap), NPN dark switching (switching on the label)
- Switching principle:
- NPN light switching (switching in the gap), PNP dark switching (switching on the label)
- Switching frequency:
- 1,750 Hz
- Response time:
- 0.24 ms
- Readiness delay:
- 300 ms
- Max. conveyor speed during teach-in:
- 50 m/min
- Number of connections:
- 1 Piece(s)
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Metal
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Plug outlet:
- Horizontal (parallel to belt movement)
- Design:
- Fork
- Mouth width:
- 4 mm
- Mouth depth:
- 80 mm
- Dimension (W x H x L):
- 22 mm x 46.9 mm x 96 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc, with powder coating
- Net weight:
- 270 g
- Housing color:
- Red
- Type of fastening:
- Mounting thread,Through-hole mounting
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Operational controls:
- Teach button
- Function of the operational control:
- Dynamic teach on label carrier and label
- Ambient temperature, operation:
- 0 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- EN 60947-5-2:2007+A1:2012
- US patents:
- US 6,314,054 B
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27272801
- ECLASS 8.0:
- 27272801
- ECLASS 9.0:
- 27272801
- ECLASS 10.0:
- 27272801
- ECLASS 11.0:
- 27272801
- ECLASS 12.0:
- 27272801
- ECLASS 13.0:
- 27272801
- ECLASS 14.0:
- 27272801
- ECLASS 15.0:
- 27272801
- ETIM 5.0:
- EC001847
- ETIM 6.0:
- EC001847
- ETIM 7.0:
- EC001847
- ETIM 8.0:
- EC001847
- ETIM 9.0:
- EC001847
- ETIM 10.0:
- EC001847
- Datasheet:
- View
- Declaration of Conformity:
- View
