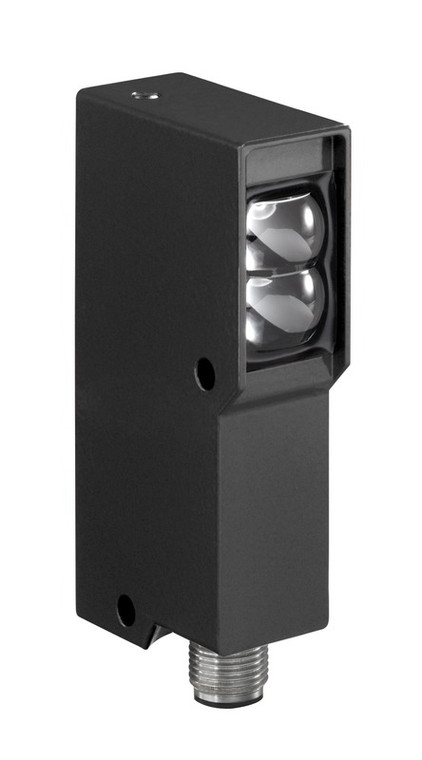

Leuze LS 92/3 E-L Ex Throughbeam photoelectric sensor receiver
Leuze
$1,269.87
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze LS 92/3 E-L Ex Throughbeam photoelectric sensor receiver
LS 92/3 E-L Ex Throughbeam photoelectric sensor receiver
- Series:
- 92
- Operating principle:
- Throughbeam principle
- Device type:
- Receiver
- Special version:
- Ex-protected
- Supply voltage UB:
- 5.5 ... 13 V, DC
- Type:
- NAMUR
- Type of connection:
- Connector
- Thread size:
- M12
- Material:
- Metal
- No. of pins:
- 4 -pin
- Dimension (W x H x L):
- 20 mm x 85 mm x 42.2 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 140 g
- Housing color:
- Black
- Ambient temperature, operation:
- -20 ... 50 °C
- Ex device category:
- 2
- Ex device group:
- II
- Ex-Zone:
- 1,21
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- Ex
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
- Datasheet:
- View
- Declaration of Conformity:
- View
