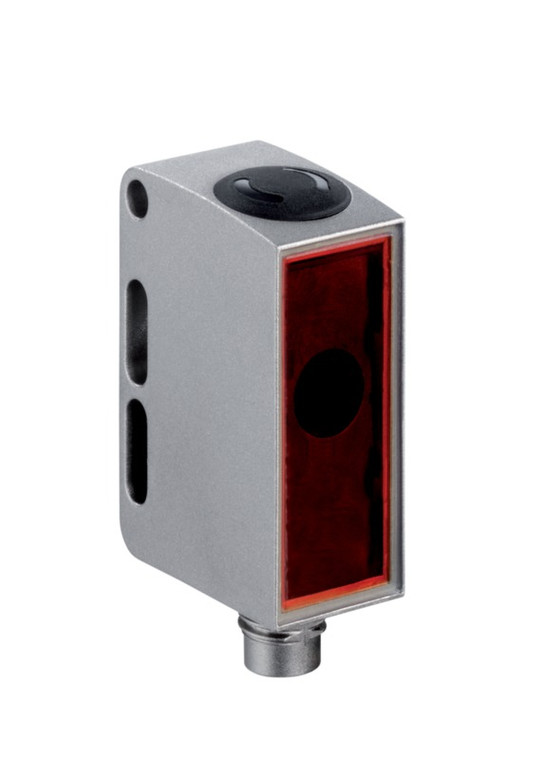

Leuze PRK 55/6.002,200-S12 Polarized retro-reflective photoelectric sensor
Leuze
$470.38
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze PRK 55/6.002,200-S12 Polarized retro-reflective photoelectric sensor
PRK 55/6.002,200-S12 Polarized retro-reflective photoelectric sensor
- Series:
- 55
- Operating principle:
- Reflection principle
- Application:
- Radiation through transparent, colored glass and PET containers
- Special version:
- All stainless steel housing,Autocollimation,Teach input
- Operating range:
- 0 ... 4 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 5 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Red
- Wavelength:
- 620 nm
- LED group:
- Exempt group (in acc. with EN 62471)
- Type of light spot geometry:
- Round
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 18 mA
- Number of teach inputs:
- 1 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, Push-pull
- Switching principle:
- Light switching (PNP)/dark switching (NPN)
- Switching frequency:
- 1,000 Hz
- Response time:
- 0.5 ms
- Readiness delay:
- 300 ms
- Function:
- Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Cable with connector
- Cable length:
- 200 mm
- Thread size:
- M12
- Type:
- Male
- Material:
- Stainless steel
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 14 mm x 35.5 mm x 25 mm
- Housing material:
- Stainless steel
- Stainless steel housing:
- AISI 316L
- Lens cover material:
- Plastic with scratch-resistant Indium protective coating
- Net weight:
- 60 g
- Housing color:
- Silver
- Type of fastening:
- Through-hole mounting
- Compatibility of materials:
- CleanProof+,ECOLAB
- Type of display:
- LED
- Operational controls:
- Teach button
- Ambient temperature, operation:
- -30 ... 55 °C
- Ambient temperature, storage:
- -30 ... 55 °C
- Degree of protection:
- IP 67,IP 69K
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270902
- ECLASS 8.0:
- 27270902
- ECLASS 9.0:
- 27270902
- ECLASS 10.0:
- 27270902
- ECLASS 11.0:
- 27270902
- ECLASS 12.0:
- 27270902
- ECLASS 13.0:
- 27270902
- ECLASS 14.0:
- 27270902
- ECLASS 15.0:
- 27270902
- ETIM 5.0:
- EC002717
- ETIM 6.0:
- EC002717
- ETIM 7.0:
- EC002717
- ETIM 8.0:
- EC002717
- ETIM 9.0:
- EC002717
- ETIM 10.0:
- EC002717
- Datasheet:
- View
- Declaration of Conformity:
- View
