Leuze

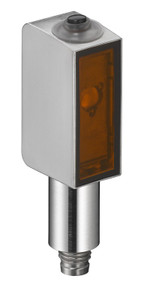

Leuze PRK53C.T3/6T-M8 Polarized retro-reflective photoelectric sensor

SKU:

PRK53C.T3/6T-M8

UPC:

MPN:

50148166

Condition:

New

Series:

53C

Operating principle:

Reflection principle

Application:

Detection of highly transparent bottles,Detection of transparent films

Special version:

Autocollimation,HYGIENE design,Teach input

Operating range:

0 ... 3 m, With reflector TK(S) 100x100

Operating range:

Guaranteed operating range

Operating range limit:

0 ... 3.6 m, With reflector TK(S) 100x100

Operating range limit:

Typical operating range

Light source:

LED, Red

Wavelength:

645 nm

LED group:

Exempt group (in acc. with EN 62471)

Protective circuit:

Polarity reversal protection,Short circuit protected

Supply voltage UB:

10 ... 30 V, DC, Incl. residual ripple

Residual ripple:

0 ... 15 %, From UB

Open-circuit current:

0 ... 15 mA

Number of teach inputs:

1 Piece(s)

Function:

Keyboard lockout,Light/dark switching,Sensitivity adjustment

Number of digital switching outputs:

1 Piece(s)

Switching element:

Transistor, Push-pull

Switching principle:

Light switching (PNP)/dark switching (NPN)

Switching frequency:

1,500 Hz

Response time:

0.33 ms

Readiness delay:

300 ms

Function:

Signal IN,Signal OUT,Voltage supply

Type of connection:

Connector

Thread size:

M8

Type:

Male

Material:

Stainless steel

No. of pins:

4 -pin

Dimension (W x H x L):

14 mm x 35.4 mm x 20.4 mm

Housing material:

Stainless steel

Material of operational control:

Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive

Housing roughness:

Ra ? 0,8, Typical value for the stainless steel housing

Stainless steel housing:

AISI 316L, DIN X2CrNiMo17132, W.No1.4404

Lens cover material:

Plastic (PMMA+) with scratch-resistant Indium protective coating

Net weight:

48 g

Housing color:

Silver

Type of fastening:

Housing fit

Compatibility of materials:

CleanProof+,ECOLAB,Johnson Diversey

Type of display:

LED

Operational controls:

Teach button

Function of the operational control:

Light/dark switching,Sensitivity adjustment

Ambient temperature, operation:

-40 ... 70 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67,IP 68,IP 69K

Protection class:

III

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270902

ECLASS 8.0:

27270902

ECLASS 9.0:

27270902

ECLASS 10.0:

27270902

ECLASS 11.0:

27270902

ECLASS 12.0:

27270902

ECLASS 13.0:

27270902

ECLASS 14.0:

27270902

ECLASS 15.0:

27270902

ETIM 5.0:

EC002717

ETIM 6.0:

EC002717

ETIM 7.0:

EC002717

ETIM 8.0:

EC002717

ETIM 9.0:

EC002717

ETIM 10.0:

EC002717

Datasheet:

View

Declaration of Conformity:

View
