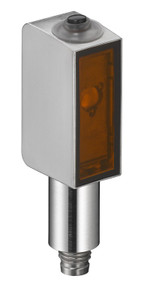

Leuze PRK55C.A3/LG-5000 Polarized retro-reflective photoelectric sensor
Leuze
$262.69
Polarized retro-reflective photoelectric sensor
- Series:
- 55C
- Operating principle:
- Reflection principle
- Special version:
- Autocollimation,Wash-Down design
- Operating range:
- 0 ... 4 m, With reflector TK(S) 100x100
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 5 m, With reflector TK(S) 100x100
- Operating range limit:
- Typical operating range
- Light source:
- LED, Red
- Wavelength:
- 645 nm
- LED group:
- Exempt group (in acc. with EN 62471)
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC, Incl. residual ripple
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 15 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- IO-Link / light switching (PNP)/dark switching (NPN)
- Switching principle:
- Dark switching (PNP)/light switching (NPN)
- Switching frequency:
- 1,500 Hz
- Response time:
- 0.33 ms
- Readiness delay:
- 300 ms
- Type:
- IO-Link
- COM mode:
- COM2
- Profile:
- Smart sensor profile
- Min. cycle time:
- COM2 = 2.3 ms
- Specification:
- V1.1
- Device ID:
- 6020
- SIO-mode support:
- Yes
- Function:
- Signal IN,Signal OUT,Voltage supply
- Type of connection:
- Cable
- Cable length:
- 5,000 mm
- Sheathing material:
- PVC
- Cable color:
- Black
- Number of conductors:
- 4 -wire
- Wire cross section:
- 0.2 mm²
- Dimension (W x H x L):
- 14 mm x 35.4 mm x 25 mm
- Housing material:
- Stainless steel
- Material of operational control:
- Plastic (POM Hostaform C9021, copolyester Tritan TX1001), non-diffusive
- Housing roughness:
- Ra ? 0,8, Typical value for the stainless steel housing
- Stainless steel housing:
- AISI 316L, DIN X2CrNiMo17132, W.No1.4404
- Lens cover material:
- Plastic (PMMA+) with scratch-resistant Indium protective coating
- Net weight:
- 210 g
- Housing color:
- Silver
- Type of fastening:
- Through-hole mounting,Via optional mounting device
- Compatibility of materials:
- CleanProof+,ECOLAB,Johnson Diversey
- Type of display:
- LED
- Operational controls:
- Teach button
- Function of the operational control:
- Light/dark switching,Sensitivity adjustment
- Ambient temperature, operation:
- -40 ... 70 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67,IP 68,IP 69K
- Protection class:
- III
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270902
- ECLASS 8.0:
- 27270902
- ECLASS 9.0:
- 27270902
- ECLASS 10.0:
- 27270902
- ECLASS 11.0:
- 27270902
- ECLASS 12.0:
- 27270902
- ECLASS 13.0:
- 27270902
- ECLASS 14.0:
- 27270902
- ECLASS 15.0:
- 27270902
- ETIM 5.0:
- EC002717
- ETIM 6.0:
- EC002717
- ETIM 7.0:
- EC002717
- ETIM 8.0:
- EC002717
- ETIM 9.0:
- EC002717
- ETIM 10.0:
- EC002717
- Datasheet:
- View
- Declaration of Conformity:
- View
