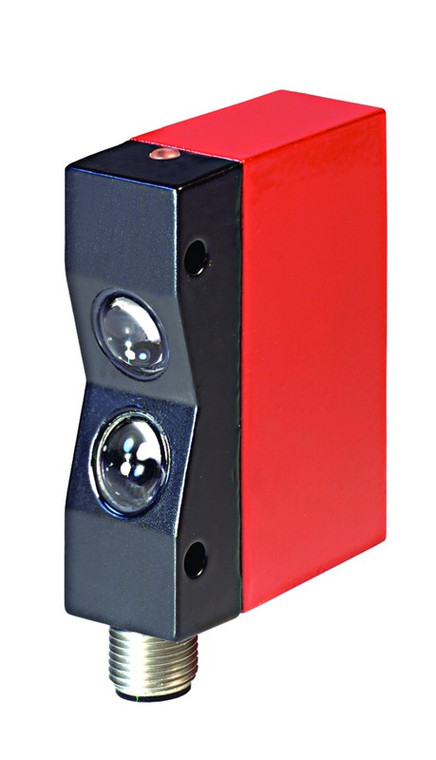

Leuze RK 93/4-60 S,6000 Energetic diffuse sensor
Leuze
$614.69
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze RK 93/4-60 S,6000 Energetic diffuse sensor
RK 93/4-60 S,6000 Energetic diffuse sensor
- Series:
- 93
- Operating principle:
- Diffuse reflection principle
- Special version:
- V-optics
- Operating range:
- 0 ... 0.06 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 0.065 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Infrared
- Type of light spot geometry:
- Round
- Protective circuit:
- Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 10 ... 30 V, DC
- Power consumption, max.:
- 0.6 W
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, PNP
- Switching principle:
- Light switching
- Switching frequency:
- 250 Hz
- Response time:
- 2 ms
- Type of connection:
- Standard plug
- Cable length:
- 6,000 mm
- Number of conductors:
- 3 -wire
- Dimension (W x H x L):
- 20 mm x 60 mm x 44 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 170 g
- Type of display:
- LED
- Ambient temperature, operation:
- -20 ... 60 °C
- Ambient temperature, storage:
- -30 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- I
- Approvals:
- c UL US
- Standards applied:
- EN 60947-5-2 (German version)
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270903
- ECLASS 8.0:
- 27270903
- ECLASS 9.0:
- 27270903
- ECLASS 10.0:
- 27270903
- ECLASS 11.0:
- 27270903
- ECLASS 12.0:
- 27270903
- ECLASS 13.0:
- 27270903
- ECLASS 14.0:
- 27270903
- ECLASS 15.0:
- 27270903
- ETIM 5.0:
- EC001821
- ETIM 6.0:
- EC001821
- ETIM 7.0:
- EC001821
- ETIM 8.0:
- EC001821
- ETIM 9.0:
- EC001821
- ETIM 10.0:
- EC001821
- Datasheet:
- View
