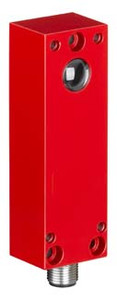

Leuze LS 64/4 E-L Throughbeam photoelectric sensor receiver
Leuze
$387.28
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze LS 64/4 E-L Throughbeam photoelectric sensor receiver
LS 64/4 E-L Throughbeam photoelectric sensor receiver
- Series:
- 64
- Operating principle:
- Throughbeam principle
- Device type:
- Receiver
- Supply voltage UB:
- 24 V, DC, 20 %
- Residual ripple:
- 0 ... 10 %, From UB
- Open-circuit current:
- 0 ... 35 mA
- Number of digital switching outputs:
- 1 Piece(s)
- Switching element:
- Transistor, PNP
- Switching principle:
- Light switching
- Switching frequency:
- 100 Hz
- Response time:
- 5 ms
- Readiness delay:
- 100 ms
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Stainless steel
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 30 mm x 90 mm x 28.5 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 430 g
- Housing color:
- Silver
- Type of fastening:
- Through-hole mounting,Via optional mounting device
- Ambient temperature, operation:
- -20 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- I
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
- Datasheet:
- View
