Leuze

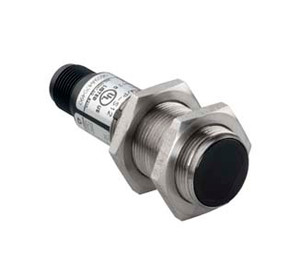

Leuze LSEL 318M/P-B5-S12 Throughbeam photoelectric sensor receiver

SKU:

LSEL 318M/P-B5-S12

UPC:

MPN:

50083180

Condition:

New

Series:

318

Operating principle:

Throughbeam principle

Device type:

Receiver

Operating range:

Guaranteed operating range

Operating range limit:

Typical operating range

Protective circuit:

Polarity reversal protection,Short circuit protected,Transient protection

Supply voltage UB:

10 ... 30 V, DC

Residual ripple:

0 ... 10 %, From UB

Open-circuit current:

0 ... 25 mA

Number of digital switching outputs:

2 Piece(s)

Switching principle:

Light switching

Switching principle:

Dark switching

Switching frequency:

5,000 Hz

Response time:

0.1 ms

Readiness delay:

30 ms

Function:

Signal OUT,Voltage supply

Type of connection:

Connector

Thread size:

M12

Type:

Male

Material:

Plastic

No. of pins:

4 -pin

Encoding:

A-coded

Dimension (Ø x L):

18 mm x 50 mm

Thread size:

M18 x 1 mm

Housing material:

Stainless steel

Stainless steel housing:

V2A

Lens cover material:

Plastic

Net weight:

60 g

Housing color:

Black,Silver

Type of display:

LED

Ambient temperature, operation:

-25 ... 60 °C

Ambient temperature, storage:

-40 ... 70 °C

Degree of protection:

IP 67

Protection class:

II

Approvals:

c UL US

Standards applied:

IEC 60947-5-2

Customs tariff number:

85365019

ECLASS 5.1.4:

27270901

ECLASS 8.0:

27270901

ECLASS 9.0:

27270901

ECLASS 10.0:

27270901

ECLASS 11.0:

27270901

ECLASS 12.0:

27270901

ECLASS 13.0:

27270901

ECLASS 14.0:

27270901

ECLASS 15.0:

27270901

ETIM 5.0:

EC002716

ETIM 6.0:

EC002716

ETIM 7.0:

EC002716

ETIM 8.0:

EC002716

ETIM 9.0:

EC002716

ETIM 10.0:

EC002716

Datasheet:

View

Declaration of Conformity:

View
