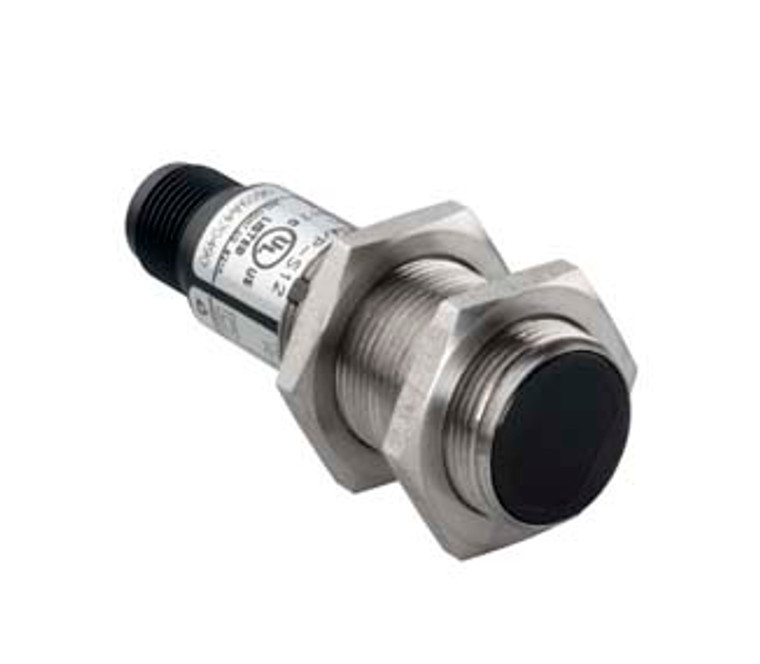

Leuze LSEL 318M/P-S12 Throughbeam photoelectric sensor receiver
Leuze
$374.01
(No reviews yet)
Write a Review
Write a Review
Leuze
Leuze LSEL 318M/P-S12 Throughbeam photoelectric sensor receiver
LSEL 318M/P-S12 Throughbeam photoelectric sensor receiver
- Series:
- 318
- Operating principle:
- Throughbeam principle
- Device type:
- Receiver
- Operating range:
- Guaranteed operating range
- Operating range limit:
- Typical operating range
- Protective circuit:
- Polarity reversal protection,Short circuit protected,Transient protection
- Supply voltage UB:
- 10 ... 30 V, DC
- Residual ripple:
- 0 ... 10 %, From UB
- Open-circuit current:
- 0 ... 25 mA
- Number of digital switching outputs:
- 2 Piece(s)
- Switching principle:
- Light switching
- Switching principle:
- Dark switching
- Switching frequency:
- 5,000 Hz
- Response time:
- 0.1 ms
- Readiness delay:
- 30 ms
- Function:
- Signal OUT,Voltage supply
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Plastic
- No. of pins:
- 4 -pin
- Encoding:
- A-coded
- Dimension (Ø x L):
- 18 mm x 50 mm
- Thread size:
- M18 x 1 mm
- Housing material:
- Stainless steel
- Stainless steel housing:
- V2A
- Lens cover material:
- Plastic
- Net weight:
- 60 g
- Housing color:
- Black,Silver
- Type of display:
- LED
- Ambient temperature, operation:
- -25 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
