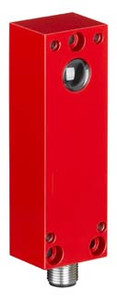

Leuze LSRL 64/2.8 SE-L Throughbeam photoelectric sensor transmitter
Leuze
$912.67
LSRL 64/2.8 SE-L Throughbeam photoelectric sensor transmitter
- Series:
- 64
- Operating principle:
- Throughbeam principle
- Device type:
- Transmitter
- Special version:
- Activation input
- Operating range:
- 0 ... 120 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 150 m
- Operating range limit:
- Typical operating range
- Light source:
- Laser, Red
- Wavelength:
- 655 nm
- Laser class:
- 2, IEC/EN 60825-1:2007
- Supply voltage UB:
- 24 V, DC, 20 %
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 35 mA
- Readiness delay:
- 100 ms
- Type of connection:
- Connector
- Thread size:
- M12
- Type:
- Male
- Material:
- Stainless steel
- No. of pins:
- 5 -pin
- Encoding:
- A-coded
- Dimension (W x H x L):
- 30 mm x 90 mm x 28.5 mm
- Housing material:
- Metal
- Metal housing:
- Diecast zinc
- Lens cover material:
- Glass
- Net weight:
- 430 g
- Housing color:
- Silver
- Type of fastening:
- Through-hole mounting,Via optional mounting device
- Ambient temperature, operation:
- -20 ... 40 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Degree of protection:
- IP 65
- Protection class:
- I
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365019
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
- Datasheet:
- View
- Declaration of Conformity:
- View
