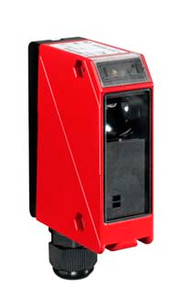

Leuze LSS 96M-1350-26 Throughbeam photoelectric sensor transmitter
Leuze
$315.65
LSS 96M-1350-26 Throughbeam photoelectric sensor transmitter
- Series:
- 96
- Operating principle:
- Throughbeam principle
- Device type:
- Transmitter
- Operating range:
- 0 ... 120 m
- Operating range:
- Guaranteed operating range
- Operating range limit:
- 0 ... 150 m
- Operating range limit:
- Typical operating range
- Light source:
- LED, Infrared
- Supply voltage UB:
- 20 ... 230 V, AC/DC
- Residual ripple:
- 0 ... 15 %, From UB
- Open-circuit current:
- 0 ... 50 mA
- Type of connection:
- Terminal
- No. of pins:
- 2 -pin
- Dimension (W x H x L):
- 30 mm x 90 mm x 70 mm
- Housing material:
- Metal
- Metal housing:
- Zinc
- Lens cover material:
- Glass
- Net weight:
- 380 g
- Note:
- Housing part used contains perfluorobutanesulfonic acid (PFBS)
- Type of display:
- LED
- Ambient temperature, operation:
- -40 ... 55 °C
- Degree of protection:
- IP 67
- Protection class:
- II
- Approvals:
- c UL US
- Standards applied:
- IEC 60947-5-2
- Customs tariff number:
- 85365080
- ECLASS 5.1.4:
- 27270901
- ECLASS 8.0:
- 27270901
- ECLASS 9.0:
- 27270901
- ECLASS 10.0:
- 27270901
- ECLASS 11.0:
- 27270901
- ECLASS 12.0:
- 27270901
- ECLASS 13.0:
- 27270901
- ECLASS 14.0:
- 27270901
- ECLASS 15.0:
- 27270901
- ETIM 5.0:
- EC002716
- ETIM 6.0:
- EC002716
- ETIM 7.0:
- EC002716
- ETIM 8.0:
- EC002716
- ETIM 9.0:
- EC002716
- ETIM 10.0:
- EC002716
- Datasheet:
- View
- Declaration of Conformity:
- View
