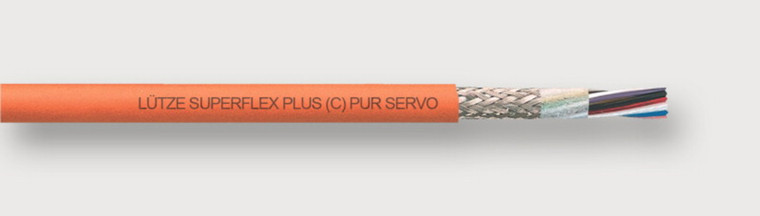

SUPERFLEX?? PLUS (C) PUR FEEDBACK
Number of conductors/cross-section
(2??2??0.25+2??0.5)
Jacket material
PUR
Jacket color
orange RAL 2003
Outer ??
7,6 mm
Outer ??
0,299 inch
Surface
- adhesion-free
- matt
Weight
9 kg/100 m
Weight
60 Lbs/Mft
Cu-Index
4,2 kg/100 m
Cu-Index
28 Lbs/Mft
Element 1
Element construction
2??2??0.25
Conductor
CU-wire bare
Conductor category
- IEC 60228, Class 6
- Superfinely stranded DIN VDE 0295
- class 6
Conductor marking
- grey
- pink
- red
- black
Conductor insulation
Special TPE
Stranding
- conductors stranded in pairs
- conductors twisted without mechanical stress
- layer pitch optimised
Element 2
Element construction
2??0.5
Conductor
CU-wire bare
Conductor category
- IEC 60228, Class 6
- Superfinely stranded DIN VDE 0295
- class 6
Conductor marking
- white
- brown
Conductor insulation
Special TPE
Stranding
- conductors twisted without mechanical stress
- layer pitch optimised
overall construction
Overall stranding
- elements stranded together
- layer pitch optimised
- conductors twisted without mechanical stress
Overall wrapping
Fleece taping
Overall shield
- Braid shield
- Tinned copper wires
- optical cover approx. 85%
Jacket characteristics
- Flame-retardant
- Oil resistant
- grease-resistant
- petrol-resistant (alcohol-free)
- kerosene-resistant
- Silicone-free
- Halogen free
Technical data
Rated voltage
300 V
Test voltage type
AC2000V
Temperature range moving
-25 ???C ?? +80 ???C
Temperature range fixed
-40 ???C ?? +80 ???C
Minimum bending radius moving
7.5??D
Minimum bending radius fixed
5??D
Travel distance
?15 m
Speed
300 m/s
Acceleration
50 m/s???®
Element 1
Element construction
2??2??0.25
Insulation resistance at 20 ???C
200 M???km
Operating capacitance wire-wire
53 pF/m
Operating capacitance wire-shield
95 pF/m
Element 2
Element construction
2??0.5
Insulation resistance at 20 ???C
200 M???km
Operating capacitance wire-wire
61 pF/m
Operating capacitance wire-shield
110 pF/m
Approvals/Standards
Approvals
cURus
UL style
AWM 20233
Conformity
- CE
- RoHS
- REACH
Burning behavior according to
- IEC 60332-1
- DIN EN 60332-1-2
- VDE 0482 322-1-2
- UL 1581 Part 1080 VW-1
- UL FT1
Halogen free according to
- DIN EN 60754-1
- IEC 60754-1
General
Note
- CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
- * Indramat article designations are registered trademarks
Incremental encoder cable, connection cable for tacho sensor, brake sensor, speed sensor Due to Full PUR jacket and TPE conductor insulation optimally suited for c-tracks, extremely rough operating conditions and aggressive coolants and lubricants Especially for industrial environments in mechanical and system engineering
