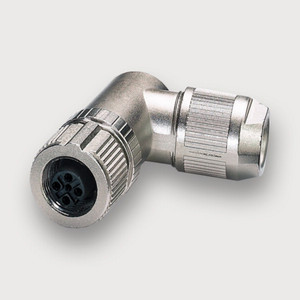

Description
Technical Data
Technical data
Rated voltage UN
AC/DC24V
Rated voltage max.
60 V
Rated current
4
Pole number
4
Coding
D
General
Test voltage
1500 V
Degree of polution
3
Insulation resistance
> 100 M??
Contact resistance
< 5 m??
Flamability according to UL 94
V0
Protection class
IP65, IP67 inserted and tightened
Housing material
Zinc die-casting, nickel-plated
Color of the housing
silver
Contact material
CuSn, gold-plated
Material knurled nut
Zinc die-casting, nickel-plated
Material sealing ring
NBR
Mounting
- Coding
- can be rotated in the 45??? increments
Cable diameter
4???8 mm
Storage temperature range
-40???C???85???C
Temperature range connector
-40???C???85???C
Mechanical service life
>100 insertion cycles
Cross-section, metric
- without AE: 0.14???0.75 mm2
- with AE: 0.14???0.5 mm2
Cross-section AWG
- without AE: AWG26???AWG18
- with AE: AWG28???AWG20
Tightening torque
- M12-knurled nut: 0.4 Nm
- sleeve housing: 0.8 Nm
- pressure nut: 3 Nm
Weight
0,039 kg/piece
Connection type
- Spring terminal
- Push-In
Approvals
cULus (E224249)
Standards
- IEC 61076-2-101
- EN 50155 (2001) vibration and shock
PU
1 piece
Dimensions
Mounting diagram
Pin layout
Symbols
