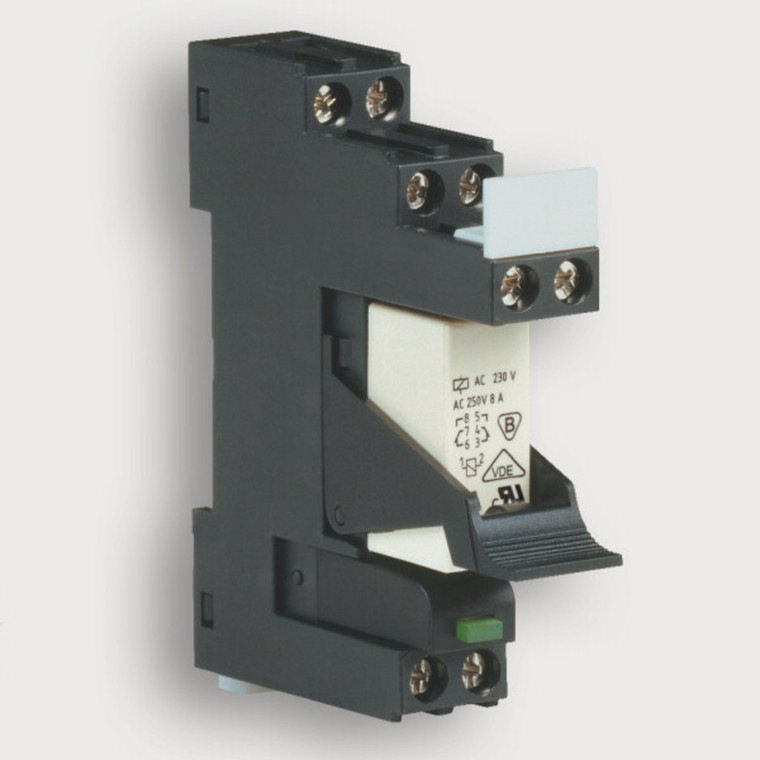

Description
Technical Data
Input
Rated voltage UN
DC 24 V
Input voltage range
16.8 V ?? 31.2 V
Rated current IN
0,016 A
Protection device Input
Free-wheeling diode
Status display input
LED green
Power consumption
0.4 W
Interrupting voltage
<2.4 V
Output
Contact type
2 changeover contacts / DPDT
Switching element
Relays
Min. switching voltage
AC/DC 5 V
Max. switching voltage
AC 400 V / DC 300 V
Min. switching current
AgNi: AC/DC 5 mA
Max. switching current
AC/DC 8 A
Switching capacity DC 13
2 A @ 24 V, 300 mA @ 115 V, 150 mA @ 230 V
Switching capacity AC 15
3.1 A @ 24 V, 2 A @ 230 V
Max. switching capacity
2000 VA
Contact material
AgNi
Mechanical service life
>107 operations
Switch-on delay
15 ms
Shutdown delay
5 ms
Protection device
none
Rated insulation voltage (EN 50178)
AC 400 V (category C 250)
General
Housing material
PA 6.6 + GF V0 (UL)
Color of the housing
black
Protection class
IP20
Mounting
DIN rail mountable TS35
Insulation voltage input / output
5.0 kVeff
Safe isolation
yes
Clearance/creepage dist.
(control/load side)
(control/load side)
Air clearance: > 10 mm, creepage clearance: > 10 mm
Operation temperature range
-40 ???C ?? +85 ???C
Storage temperature range
-40???C??85???C
Dimensions (w ?? h ?? d)
15,6??75??67 mm
(including mounting bracket)
Weight
0,062 kg/piece
Connection type
- Screw terminal
- 0.20 mm2 ?? 4.0 mm2
Standards
EN 60947-4-1
Approvals
cULus
Dimensions
PIN assignment
