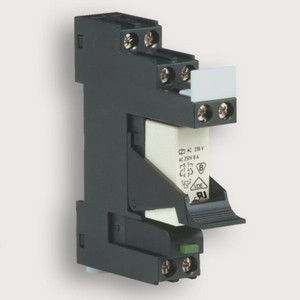

Description
Technical Data
Input
Rated voltage UN
DC 24 V
Input voltage range
16.8 V ??? 31.2 V
Rated current IN
0,016 A
Protection device Input
Free-wheeling diode
Status display input
LED green
Power consumption
0.4 W
Interrupting voltage
<2.4 V
Output
Contact type
2 changeover contacts / DPDT
Min. switching voltage
AC/DC 5 V
Max. switching voltage
AC 400 V / DC 300 V
Min. switching current
AgNi + 5 ???m HV: AC/DC 2 mA
Max. switching current
AC/DC 8 A
Switching capacity DC 13
2 A @ 24 V, 300 mA @ 115 V, 150 mA @ 230 V
Switching capacity AC 15
3.1 A @ 24 V, 2 A @ 230 V
Max. switching capacity
2000 VA
Contact material
AgNi + 5 ???m HV
Mechanical service life
>107 operations
Switch-on delay
15 ms
Shutdown delay
5 ms
Protection device
none
Rated insulation voltage (EN 50178)
AC 400 V (category C 250)
General
Housing material
PA 6.6 + GF V0 (UL)
Color of the housing
black
Protection class
IP20
Mounting
DIN rail mountable TS35
Insulation voltage input / output
5.0 kVeff
Safe isolation
yes
Clearance/creepage dist.
(control/load side)
(control/load side)
Air clearance: > 10 mm, creepage clearance: > 10 mm
Operation temperature range
-40 ???C ??? +85 ???C
Storage temperature range
-40???C???85???C
Dimensions (w ?? h ?? d)
15,6??75??67 mm
(including mounting bracket)
Weight
0,062 kg/piece
Connection type
- Screw terminal
- 0.20 mm2 ??? 4.0 mm2
Standards
EN 60947-4-1
Approvals
cULus
Comments
In order to avoid damage to the gold layered contacts, do not exceed product specificatoins as permanent damage or sparking could occur betwen the coil and the contacts.
Dimensions
PIN assignment
