Description
Technical Data
Construction
Description

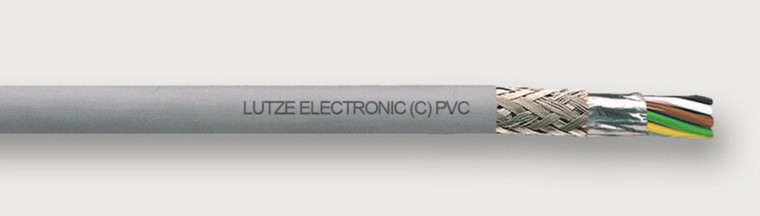

ELECTRONIC (C) PLTC PVC TP
Number of conductors/cross-section
8??2??AWG22
Jacket material
PVC
Jacket color
grey RAL 7001
Outer ??
9,6 mm
Outer ??
0,378 inch
Weight
98 Lbs/Mft
Cu-Index
54 Lbs/Mft
Element 1
Element construction
AWG22/8TP
Conductor construction
AWG 22 (19/34)
Conductor
- AWG conductor
- CU-wire tin-plated
Conductor category
fine wire
Conductor marking
- white
- black
- white
- brown
- white
- red
- white
- orange
- white
- yellow
- white
- green
- white
- blue
- white
- violet
Conductor insulation
SR-PVC
Stranding
conductors stranded in pairs
overall construction
Drain wire
CU-wire tin-plated
Overall shield
- aluminium-laminated film shield
- Braid shield
- Tinned copper wires
Jacket characteristics
- Flame-retardant
- Oil resistant
- Silicone-free
Technical data
Rated voltage UL
300 V
Temperature range fixed
-40 ???C ?? +105 ???C
Minimum bending radius fixed
4??D
Element 1
Element construction
AWG22/8TP
Approvals/Standards
Approvals
- cULus
- PLTC
- UL Type CM
- cURus
- AWM II A/B
- NEC 725, 760, 800
- Class 1 Div. 2 (PLTC use only)
- Art. 336, 392, 501
UL style
AWM 2464
Conformity
- CE
- REACH
- RoHS
Burning behavior according to
- UL VW-1
- UL FT4
Oil resistant according to
Oil Res II
General
Note
CE These products are in conformity with the EU Low Voltage Directive 2014/35/EU
Double shielded industrial grade PLTC electronic cable for machine tools, process instrumentation and controls, computer peripherals, HVAC technology, assembly and production lines, low voltage interconnect and other industrial applications including installation in cable trays
