SMC MDSUB20-90S-R73L Rotary Table, Basictype

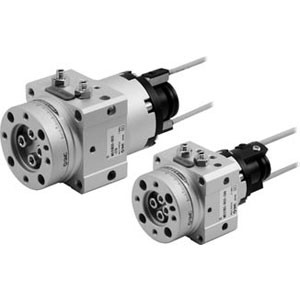

SMC MDSUB20-90S-R73L MSUB Series Rotary Table

SMC
SKU:
MDSUB20-90S-R73L
$325.35
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

MSUB Series Rotary Table

  • Integration of a table and rotary actuator;
  • Angle adjustable, ±5º at each rotation end (Double: ±2.5º);
  • Table deflection accuracy: 0.03 mm or less (MSUA);
  • Connection port position: Side ported and axial ported selectable (When a switch ;?is installed, side ported only.);
  • Possible to move the auto switch mounting position as desired;
  • With auto switch (Series MDSU: MDSUA, MDSUB)
    • Additional Information
    With Auto Switch(Built-in Magnet):
    With Auto Switch(Built-in Magnet)
    Nominal Size:
    MSUA 20
    Rotation Angle:
    90°
    Vane Type:
    Single Vane
    Connecting Port:
    Side Ported
    Auto Switch:
    Reed Auto Switch, Grommet, With Indicator Light, 2-wire, In-line, Lead Wire :3m, Apply Voltage :DC24V,AC100V
    Number Of Auto Switches:
    2 pcs. Or None
