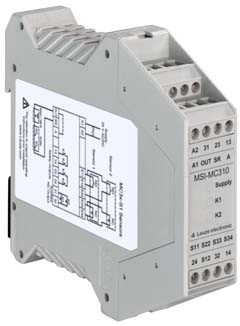

MSI-MC310 Safety relay
- Series:
- MSI-MC3x
- Application:
- Evaluation unit for magnetically coded sensors with antivalent reed contacts
- Functions:
- For stop category 0,Start/restart interlock (RES),Static contactor monitoring (EDM)
- Restart:
- Automatic,Manual
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- Performance Level (PL):
- e, EN ISO 13849-1
- PFHD:
- 2,5E-08 per hour
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849-1, (1 sensor connected)
- STOP category:
- 0, IEC/EN 60204-1
- Protective circuit:
- Fuse on switching output, upstream
- Continuous current per current path, max.:
- 3 A
- Input current, max.:
- 150 mA
- External contact fuse protection per current path:
- 4 A gG
- Supply voltage UB:
- 24 V, AC/DC, -10 ... 10 %
- Power consumption, max.:
- 4.6 W, For 24 V, plus output load
- Number of safety-related switching outputs (OSSDs):
- 2 Piece(s)
- Number of digital switching outputs:
- 1 Piece(s)
- Type:
- Safety-related switching output OSSD
- Type:
- Digital switching output
- Switching element:
- Relay, NC
- Function:
- EDM switching output
- Number of outputs, safety-oriented, non-delayed, contact-based:
- 2 Piece(s)
- Number of outputs, safety-oriented, delayed, contact-based:
- 0 Piece(s)
- Number of outputs, signaling function, non-delayed, contact-based:
- 1 Piece(s)
- Max. thermal continuous current Ith, release current paths:
- 3 A
- Response time:
- 20 ms
- Pickup delay, automatic start:
- 400 ms
- Pickup delay, manual start:
- 600 ms
- Regression delay:
- 20 ms
- Time window between 2 channels of a sensor, max.:
- 500 ms
- Number of connections:
- 1 Piece(s)
- Function:
- Connection to device,Voltage supply
- Type of connection:
- Terminal
- Type of terminal:
- Screw terminal
- No. of pins:
- 16 -pin
- Connection cross sections:
- 1 x 0.2 to 2.5 mm², wire,1 x 0.25 to 2.5 mm², wire with wire-end sleeve,2 x 0.2 to 1.0 mm², wire,2 x 0.2 to 1.5 mm², wire,2 x 0.5 to 1.5 mm², wire with twin wire-end sleeve,2 x 0.25 to 1.0 mm², wire with wire-end sleeve
- Dimension (W x H x L):
- 22.5 mm x 99 mm x 113.6 mm
- Housing material:
- Plastic
- Plastic housing:
- PA
- Net weight:
- 220 g
- Housing color:
- Gray
- Type of fastening:
- Snap-on mounting
- Mechanical life time:
- 10,000,000 actuation cycles
- Type of display:
- LED
- Number of LEDs:
- 3 Piece(s)
- Ambient temperature, operation:
- 0 ... 55 °C
- Ambient temperature, storage:
- -25 ... 70 °C
- Relative humidity (non-condensing):
- 4 ... 100 %
- Degree of protection:
- IP 20 (terminals),Installation in switch cabinet or housing with degree of protection of at least IP 54,IP 40 (housing)
- Approvals:
- TÜV Süd,c UL US
- Test procedure for oscillation in accordance with standard:
- EN 60947-5-3
- Customs tariff number:
- 85423990
- ECLASS 5.1.4:
- 27371800
- ECLASS 8.0:
- 27371819
- ECLASS 9.0:
- 27371819
- ECLASS 10.0:
- 27371819
- ECLASS 11.0:
- 27371819
- ECLASS 12.0:
- 27371819
- ECLASS 13.0:
- 27371819
- ECLASS 14.0:
- 27371819
- ECLASS 15.0:
- 27371819
- ETIM 5.0:
- EC001449
- ETIM 6.0:
- EC001449
- ETIM 7.0:
- EC001449
- ETIM 8.0:
- EC001449
- ETIM 9.0:
- EC001449
- ETIM 10.0:
- EC001449
