MSI-MD-FB Muting interface
- Series:
- MSI-MD-FB
- Application:
- Muting interface for muting applications in combination with standard variants of the MLC and ELC safety light curtains, as well as MLD multiple light beam safety devices
- Functions:
- Muting-timeout extension,Muting enable function,Sequence controlled 2-sensor muting,Sequence controlled 4-sensor muting,Timing controlled 2-sensor muting
- Restart:
- Automatic,Manual
- SIL:
- 3, IEC 61508
- SILCL:
- 3, IEC/EN 62061
- Performance Level (PL):
- e, EN ISO 13849-1
- PFHD:
- 2.5E-09 per hour
- Mission time:
- 20 years, EN ISO 13849-1
- Category:
- 4, EN ISO 13849-1
- Protective circuit:
- Overvoltage protection,Polarity reversal protection,Short circuit protected
- Supply voltage UB:
- 24 V, DC, -20 ... 20 %, Compensation necessary at 20 ms voltage dip, min. 250 mA (+ external loads)
- Current consumption, max.:
- 150 mA, Without external load
- Power consumption, max.:
- 3.6 W, For 24 V, plus output load
- Residual ripple:
- -5 ... 5 %, From UB
- Number of safety-related switching inputs:
- 2 Piece(s)
- Number of digital switching inputs:
- 8 Piece(s)
- Type:
- Digital switching input
- Function:
- Control input, reset of the control,Control input for Reset
- Function:
- Control input, muting sensor 1 of the control
- Function:
- Control input, muting enable/muting timeout
- Function:
- Control input for Reset
- Function:
- Control input for muting sensor 1,Control input for muting sensor 2,Control input for muting sensor 3,Control input for muting sensor 4
- Type:
- Safety switching input
- Switching voltage low, max.:
- 18 V
- Number of safety-related switching outputs (OSSDs):
- 2 Piece(s)
- Number of digital switching outputs:
- 3 Piece(s)
- Type:
- Safety-related switching output OSSD
- Switching voltage high, min.:
- 18 V
- Switching current, max.:
- 380 mA
- Load inductivity:
- 2,000 µH
- Load capacity:
- 0.3 µF
- Residual current, max.:
- 0.2 mA
- Residual current, type.:
- 0.002 mA
- Type:
- Digital switching output
- Function:
- "Error" signal output
- Function:
- ReadyForReset signal output
- Function:
- "Muting state" signal output
- Restart delay time:
- 100 ms
- Regression delay:
- 5 ms
- Number of connections:
- 8 Piece(s)
- Function:
- Machine interface
- Type:
- Male
- No. of pins:
- 8 -pin
- Function:
- Connection - safety sensor
- Function:
- Connection - muting indicator
- Function:
- Connection - acknowledgment unit
- Function:
- Connections for four muting sensors
- Function:
- Service interface
- Type of connection:
- USB
- Connector type:
- USB 2.0 Micro-B
- Permissible conductor cross section, type.:
- 0.25 mm²
- Length of connection cable, max.:
- 50 m
- Dimension (W x H x L):
- 60 mm x 38.3 mm x 225 mm
- Net weight:
- 560 g
- Housing color:
- Yellow
- Type of fastening:

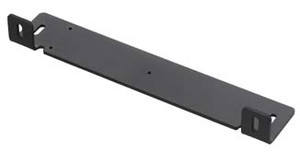

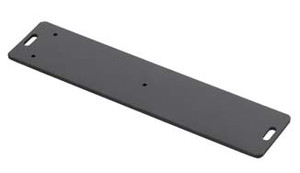

- Mounting plate,Mounting plate with L-angle,Through-hole mounting
- Type of display:
- LED
- Number of LEDs:
- 14 Piece(s)
- Operational controls:
- DIP switch
- Function of the operational control:
- Selection of operating mode
- Ambient temperature, operation:
- -30 ... 60 °C
- Ambient temperature, storage:
- -40 ... 70 °C
- Relative humidity (non-condensing):
- 0 ... 95 %
- Degree of protection:
- IP 67
- Protection class:
- III
- Approvals:
- TÜV Süd,c UL US
- Test procedure for oscillation in accordance with standard:
- IEC/EN 60068-2-6
- Shock resistance:
- 100 m/s²
- Test procedure for shock in accordance with standard:
- IEC/EN 60068-2-6
- US patents:
- US 6,418,546 B
- Customs tariff number:
- 85369095
- ECLASS 5.1.4:
- 27371811
- ECLASS 8.0:
- 27371811
- ECLASS 9.0:
- 27371811
- ECLASS 10.0:
- 27371811
- ECLASS 11.0:
- 27371819
- ECLASS 12.0:
- 27371819
- ECLASS 13.0:
- 27371819
- ECLASS 14.0:
- 27371819
- ECLASS 15.0:
- 27371819
- ETIM 5.0:
- EC001448
- ETIM 6.0:
- EC001448
- ETIM 7.0:
- EC001448
- ETIM 8.0:
- EC001449
- ETIM 9.0:
- EC001449
- ETIM 10.0:
- EC001449
