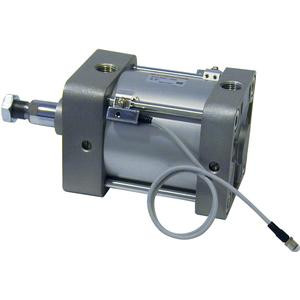

series nca1 medium duty tie rod cylinders are nfpa interchangeable, have a crimped piston rod assembly, are pre-lubricated and available in 11 mounting styles. bore sizes range from 1.5 to 4 inches. the nca1 expanded line of medium duty cylinders offer bore sizes ranging from 5 to 8 inches, and come standard with adjustable air cushion.
- 5in. bore medium duty air cylinder
- 11 nfpa mounting options
- standard with adjustable air cushion
- auto switch capable
- Lead Wire or Prewired Connector:
- 3m
- Auto Switch:
- A54--Reed, DC Volt >5<24, AC Volt <200, LED
- Adjustment Range:
- Not Applicable
- Air Cushion / Rod Boot:
- Air Cushion
- Stroke:
- 10"
- Bore Size:
- 2 1/2"
- Mounting:
- MX0, Basic
- Magnet:
- Built-in
