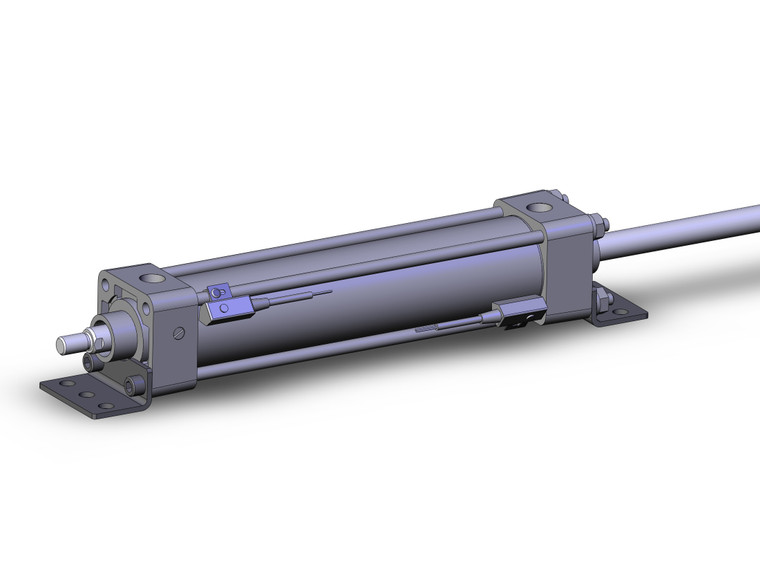

SMC NCDA1WL200-0800-J59SAPC Tie Rod Cylinder
SMC
$337.80
series nca1 medium duty tie rod cylinders are nfpa interchangeable, have a crimped piston rod assembly, are pre-lubricated and available in 11 mounting styles. bore sizes range from 1.5 to 4 inches. the nca1 expanded line of medium duty cylinders offer bore sizes ranging from 5 to 8 inches, and come standard with adjustable air cushion.
- medium duty cylinder, double rod type
- standard with air cushion
- bore sizes available: 1 1/2in. ~ 4in.
- 5 mounting styles available
- auto switch capable
- Magnet:
- Built-in
- Mounting:
- Foot
- Bore Size:
- 2 Inch
- Stroke:
- 8 Inch
- Air Cushion:
- Air Cushion
- Auto Switch:
- J59--Solid State, Gen. Purpose, 2 Wire, 0.5M
- Lead Wire or Prewired Connector:
- 0.5m Cord Length, M8-3 Pin Connector
